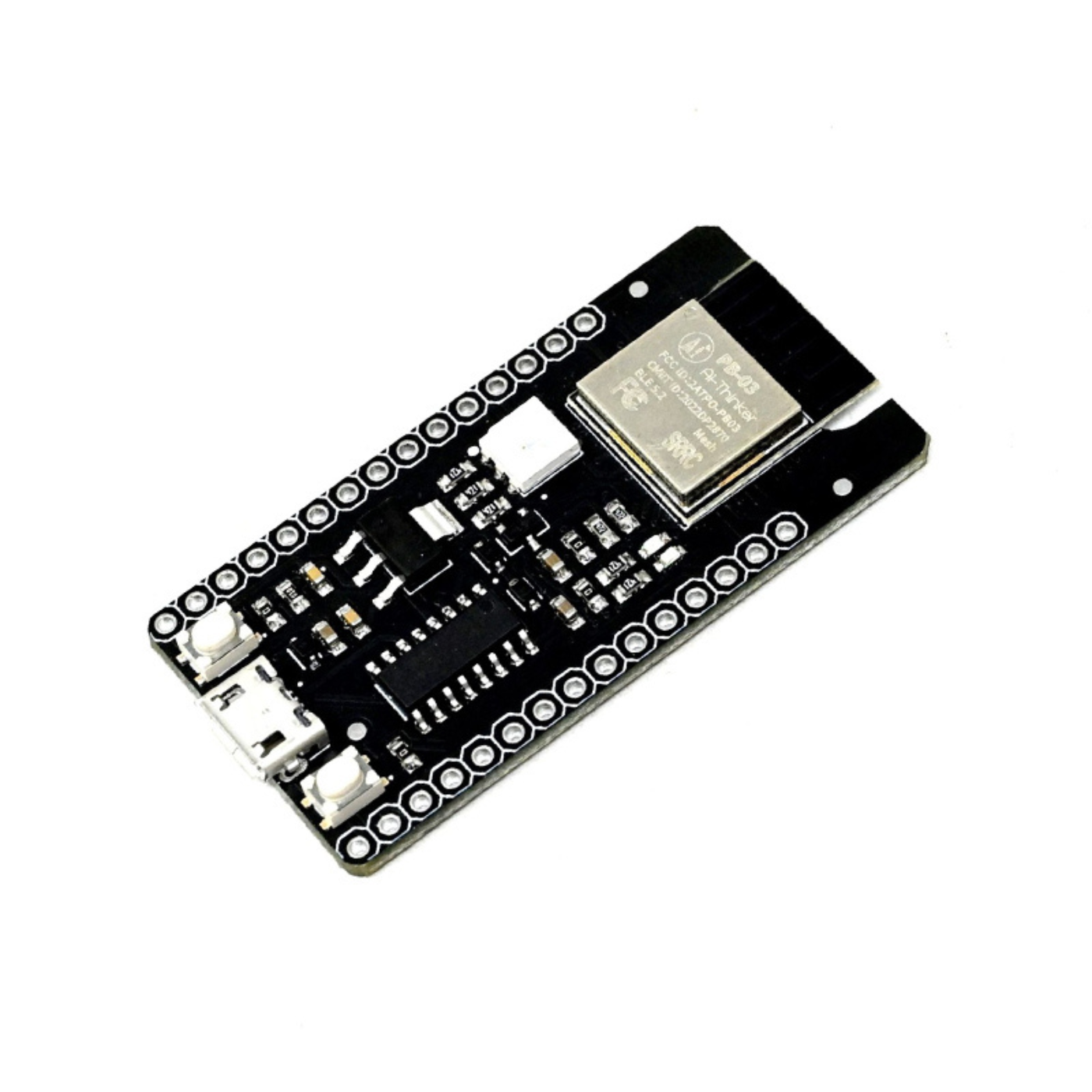

SmartElex PB-03 Bluetooth Module
Low Stock, 1 left
Product Description
The PB-03 is a BLE 5.2 module based on the PHY6252 SoC, offering low-power operation, BLE mesh, hardware security and rich peripheral interfaces for IoT and wearable applications.
Product Specifications
| Item Type | BLE module |
|---|---|
| Model | PB-03 |
| Processor | PHY6252 |
| Bluetooth | BLE 5.2 / BLE Mesh |
| Supply Voltage | 2.7–3.6V |
| Frequency | 2400–2483.5MHz |
| Memory | 64KB SRAM, 256KB Flash, 96KB ROM |
| Interfaces | UART, GPIO, ADC, PWM, I2C, I2S, SPI, PDM, DMA |
| GPIO | Up to 19 |
| Security | AES-128 |
| Dimensions | 16.6 × 13.2 × 2.8mm |
| Operating Temperature | -40°C to 85°C |
Product Features
- Bluetooth 5.2 Platform
Supports BLE 5.2, BLE mesh and data rates from 125Kbps to 2Mbps. - Low-Power PHY6252 SoC
Designed for IoT, mobile, wearable and smart-home devices. - Rich Peripheral Interfaces
Includes UART, GPIO, ADC, PWM, I2C, SPI, PDM and DMA connectivity. - Hardware Security
AES-128 acceleration supports secure wireless applications. - Firmware Upgrade Support
Supports serial local upgrades and remote FOTA updates.
Package Includes
1 × SmartElex PB-03 Bluetooth Module 2 × Male HeadersOther Information
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- BLE 5.2 and BLE mesh support
- PHY6252 low-power SoC
- 64KB SRAM, 256KB Flash and 96KB ROM
- UART, GPIO, ADC, PWM, I2C, SPI, PDM and DMA interfaces
- AES-128 hardware security
- Deep-sleep current below 1µA
SKU: 2EIC20005
