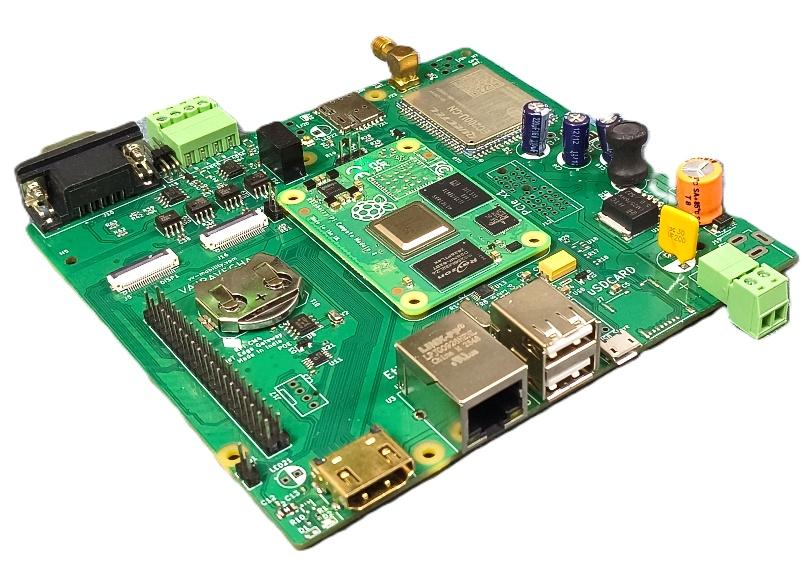

VVM801 - Vajravegha Industrial Edge Computer IoT Gateway Board
Low Stock, 5 left
Product Description
Vajravegha Mobility Pvt Ltd, based in Mumbai is a full-scale solution provider in the field of IoT, DC Energy Measurement and Embedded Systems. VVM801 is an innovative and user-friendly IoT development board designed to simplify embedded Artificial Intelligence (AI) and Internet of Things (IoT). Based on the original Raspberry Pi Compute Module 4 IO Board (CM4IO), it integrates HDMI, Ethernet, USB, 4G connectivity, dual RS485, RS232 and GNSS, making it suitable for automation, IoT and edge computing applications.
VVM801 enables users to run applications on-board, migrate workloads away from third-party cloud services and retain control of data and costs. Its all-in-one design reduces the effort of sourcing and assembling individual components and supports the Make in India initiative.
Applications
Embedded/Edge AIoT solutions
Industrial automation systems
Data acquisition and logging
Control systems
Product Specifications
| Compute Module Support | Raspberry Pi Compute Module 4; all variants except Lite variants without eMMC |
| 4G LTE | Quectel EC200U-CN LTE Cat 1, up to 10Mbps downlink |
| Serial Interfaces | Dual isolated RS485; single isolated RS232 |
| Ethernet | Gigabit Ethernet; PoE not supported |
| USB | Dual USB 2.0 hub plus micro USB for programming / flashing eMMC |
| Display | HDMI 2.0 connector |
| GNSS | Built-in GNSS/GPS |
| RTC | PCF85063AT over I2C; CR2032 battery socket |
| Fan Control | +5V PWM fan with tacho output; EMC2301 controller over I2C |
| Power Supply | 9 - 30V DC |
| PCB Size | 130 × 120 mm |
| GPIO14 | RS485 Channel 1 Tx / RS232 Tx |
| GPIO15 | RS485 Channel 1 Rx / RS232 Rx |
| GPIO4 | RS485 Channel 2 Tx |
| GPIO5 | RS485 Channel 2 Rx |
| J6 Boot Jumper | If fitted, forces USB booting for flashing the Compute Module from the micro USB connector |
| J15 Selector | Selects either RS232 or RS485 Channel 1 |
| D15 | Red Power Indication LED |
| D10 | Red Network Activity LED for 4G |
| D2 | Green Compute Module Activity LED |

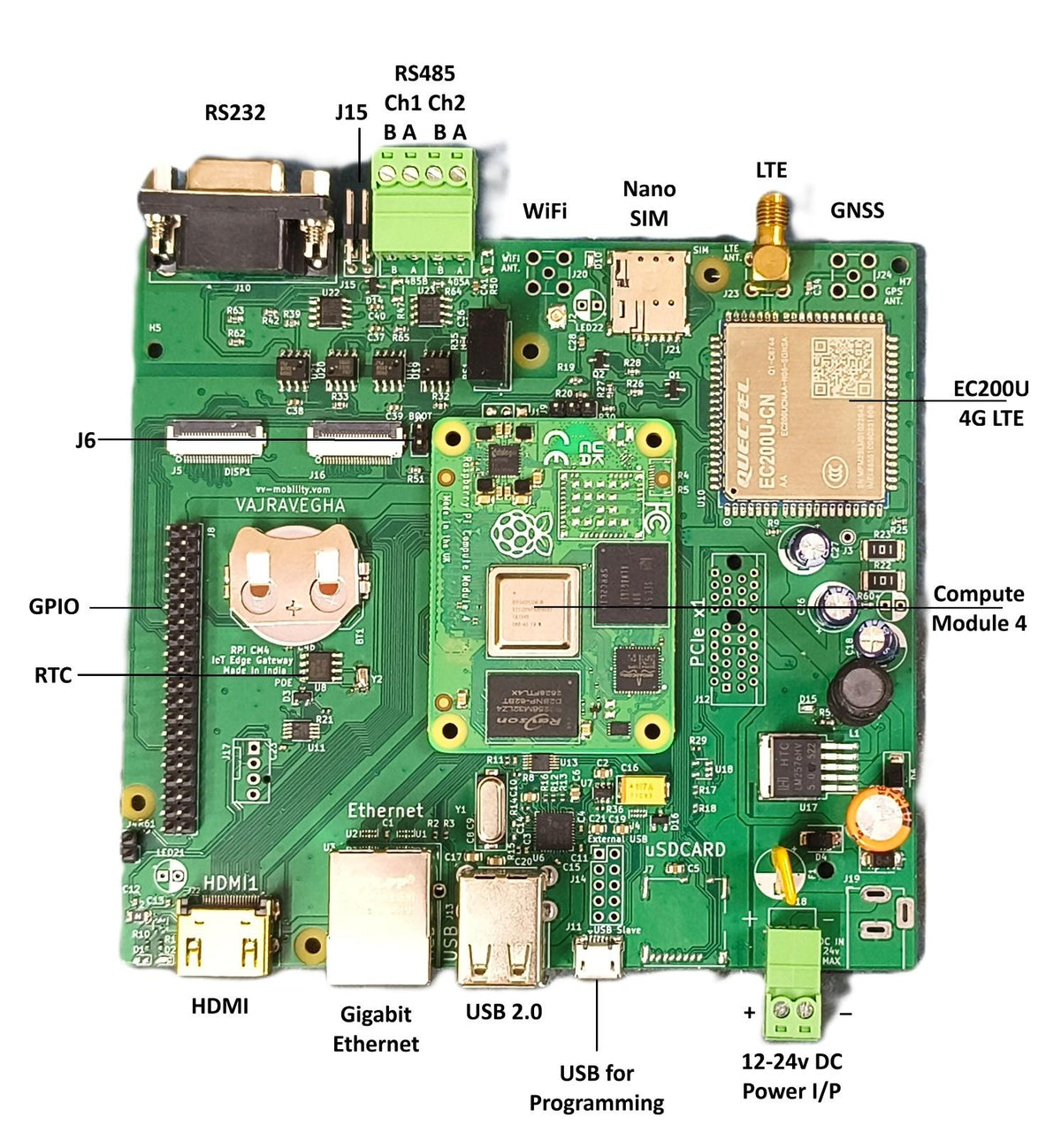

Product Features
- CM4 Module Connectors: Two CM4 module connectors for directly plugging the Compute Module 4 board.
- Gigabit Ethernet Socket: Standard 1:1 Ethernet magjack; PoE is currently not supported.
- 4G LTE Module: Quectel EC200U modem connected to the USB port of the CM4.
- RS485 and RS232: Isolated dual-channel RS485 and single-channel RS232 for PLCs, sensors, energy meters, DI/DO devices and related equipment.
- HDMI 2.0 Connector for displays and audio-video interfaces.
- USB 2.0 Hub with dual USB connectors connected to the CM4 USB port.
- Micro USB connector for updating CM4 via rpiboot; plugging in micro USB disables the USB hub so the CM4 USB 2.0 port becomes a USB device.
- Standard Raspberry Pi 40-way HAT connector.
- PCF85063AT real-time clock with CR2032 battery socket.
- +5V PWM fan connector with tacho output, controlled by EMC2301 over I2C.
Package Includes
- 1 × Vajravegha VVM801 Industrial Edge Computer IoT Gateway Board
Other Information
Country of Origin: India
Warranty Information
1 Year Seller Warranty
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time for orders within India is 7-10 working days. Delivery varies based on location and courier service.
- Delivery time for orders outside India is up to 20 working days. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Based on Raspberry Pi Compute Module 4; supports all CM4 variants except Lite variants without eMMC
- Quectel EC200U-CN 4G LTE Cat 1 module with 10Mbps downlink
- Dual Isolated RS485 and Single Isolated RS232
- Gigabit Ethernet socket
- Dual USB 2.0 hub
- Additional USB port for programming / flashing the eMMC
- HDMI connector
- Built-in GNSS/GPS
- RTC based on I2C protocol
- PWM fan controller
- 9 - 30v DC Power Supply, PCB size 130x120, separate enclosure available
