VVM777 - 8 Channel Input 8 Channel Relay Output Modbus RS485 Module

Back to previous page
Low Stock, 1 left

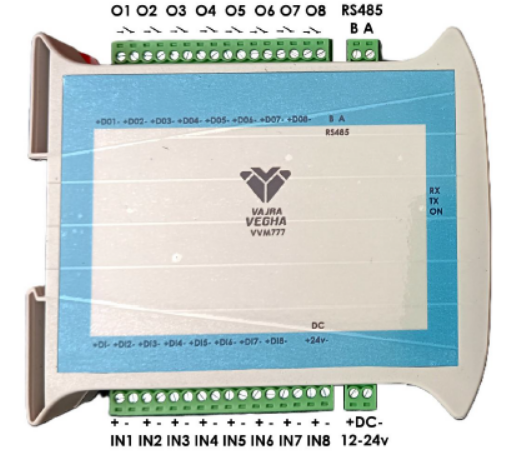

Vajravegha VVM777 Digital Input Output Module angled view

Product Description

VVM777 provides economical and precise Digital IO solution for industrial automation applications. It is equipped with 8 channel digital opto-isolated inputs and 8 relay outputs. It supports Modbus RTU protocol over isolated RS485 to directly provide input values and control relay outputs.

Product Specifications

RegisterReading and access
40001DI1 — Read only
40002DI2 — Read only
40003DI3 — Read only
40004DI4 — Read only
40005DI5 — Read only
40006DI6 — Read only
40007DI7 — Read only
40008DI8 — Read only
40009DO1 — Read / Write
40010DO2 — Read / Write
40011DO3 — Read / Write
40012DO4 — Read / Write
40013DO5 — Read / Write
40014DO6 — Read / Write
40015DO7 — Read / Write
40016DO8 — Read / Write
40017Slave ID (1-247) default 1 — Read / Write
40018Baud Rate (1: 9600, 2: 19200) default 9600 — Read / Write
40019Parity (0: None, 1: Odd, 2: Even) default 0 — Read / Write
40020Stop Bit (1 or 2) default 1 — Read / Write

Frequently Asked Questions

What is the VVM777 - 8 Channel Input 8 Channel Relay Output Modbus RS485 Module used for?
VVM777 provides economical and precise Digital IO solution for industrial automation applications. It is equipped with 8 channel digital opto-isolated inputs and 8 relay outputs. It supports Modbus RTU protocol over isolated RS485 to directly provide input values and control relay outputs.
What are its main features?
8 channel digital isolated inputs upto 24v DC; 8 channel relay outputs; Modbus RTU over Isolated RS485 Slave Device; Power supply upto 24v DC, LED indication for Power, Tx and Rx.
What specifications should I check before choosing this product?
Register: Reading; 40001: DI1; 40002: DI2; 40003: DI3.
How should I prepare this product for use?
Check the connections, mounting and any setup instructions for VVM777 - 8 Channel Input 8 Channel Relay Output Modbus RS485 Module before installation. Confirm compatibility with the rest of your system rather than assuming direct plug-and-play operation.
What is included in the package?
A package-content list is not specified for VVM777 - 8 Channel Input 8 Channel Relay Output Modbus RS485 Module. Confirm the supplied quantity and any required cables, power supplies, batteries or mounting accessories before ordering.

Warranty Information

1 Year Seller Warranty

This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.

What Voids Warranty

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Shipping & Returns Policy

Shipping Policy:
  • In-stock items are shipped within 7-10 working days for orders within India. Delivery varies based on location and courier service.
  • In-stock items are shipped within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
  • If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
  • Return window: 7 days from receipt unless stated otherwise.
  • No refunds or replacements after the return window.
  • Returns are accepted only for non-working or damaged products.
  • Initiate return requests from here: Return Request or contact us at 09831070550.
  • Refunds are processed within 3-4 working days after inspection and approval.

Main Features

  • 8 channel digital isolated inputs upto 24v DC
  • 8 channel relay outputs
  • Modbus RTU over Isolated RS485 Slave Device
  • Power supply upto 24v DC, LED indication for Power, Tx and Rx
  • Compact Enclosure with space saving vertical DIN mount
