WS202-868M - PIR & Light Sensor
Low Stock, 1 left
Product Description

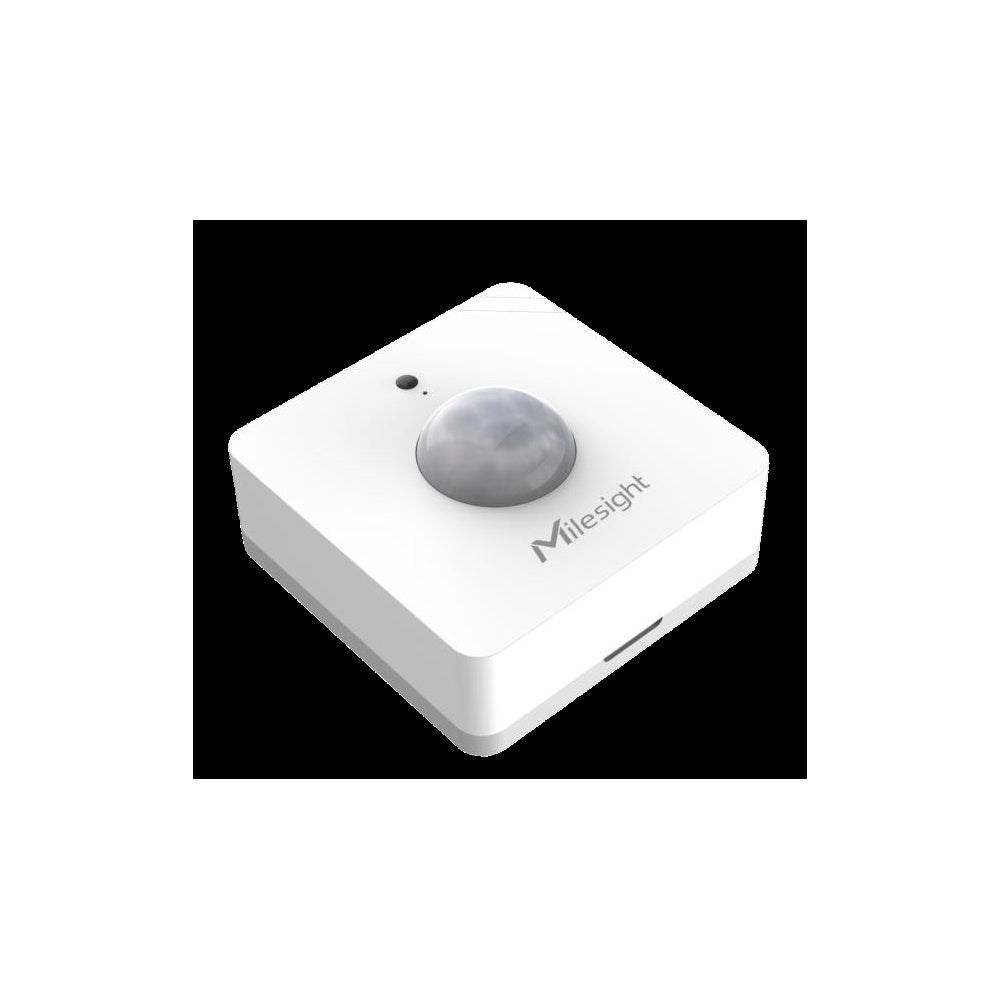

WS202-868M PIR & Light Sensor is a compact, battery-powered LoRaWAN indoor sensor combining passive infrared (PIR) motion / occupancy detection with bright-or-dark light status.
Designed for smart homes, offices, schools, warehouses and commercial facilities, it can report presence events and support occupancy-based lighting or other automated scenes.

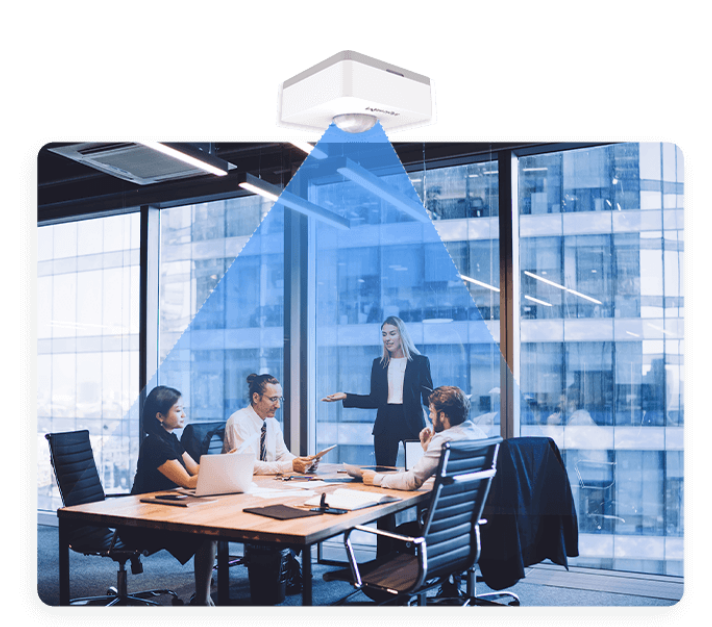

The PIR sensor detects motion at distances of up to 8 m , with 120° horizontal and 100° vertical sensing coverage.

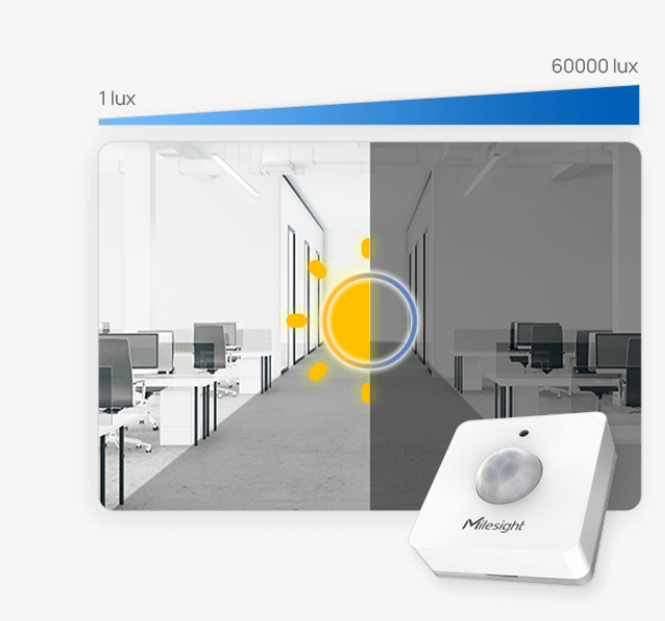

Its built-in ambient-light sensor determines Bright / Dark status against a customizable threshold within 1–60,000 lux .
Applications
Occupancy Monitoring
Smart Lighting
Smart Building
Workplace Monitoring
Space Utilization
Remote Equipment Monitoring
Product Specifications
| Brand / Manufacturer | Milesight |
| Model | WS202-868M |
| Product Type | PIR Motion & Light Sensor |
| Operating Location | Indoor |
| Sensor Technology | Passive infrared (PIR) with Fresnel lens and light-status sensing |
| Motion / Occupancy Detection | PIR movement / occupancy events |
| PIR Detection Range | Up to 8 m |

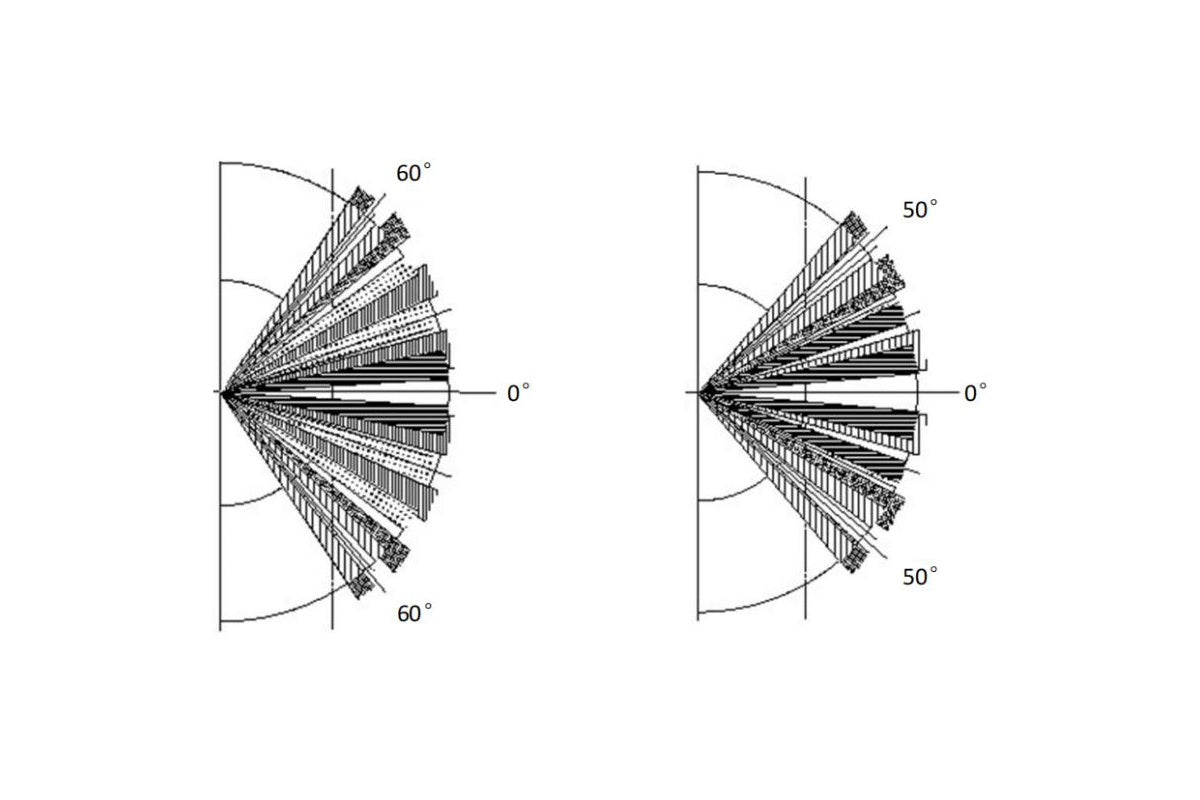

| PIR Horizontal Detection Angle | 120° |
| PIR Vertical Detection Angle | 100° |
| Light Status | Bright / Dark threshold classification |
| Light Threshold Range | 1–60,000 lux, user-defined Bright / Dark boundary |
| Wireless Technology | LoRaWAN® and Milesight D2D |
| Requested Product Frequency | EU868 / 868 MHz variant |
| Other WS202 Family Frequencies | CN470, IN865, RU864, US915, AU915, KR920 and AS923 (different versions) |
| LoRaWAN Transmit Power at 868 MHz | 16 dBm |
| Receiver Sensitivity | −137 dBm @ 300 bps |
| LoRaWAN Activation / Class | OTAA / ABP Class A |
| Antenna | Internal |
| Wireless Range | Up to 15 km with unobstructed line of sight; site-dependent |
| Milesight D2D Communication | Supported; direct-compatible-device control without gateway |
| Status Indicator | 1 × LED status indicator |
| Reset Button | 1 × internal reset button |
| Configuration | Mobile app via NFC |
| NFC Features | One-touch configuration; card-emulation mode |
| Advanced Functions | Milesight D2D controller; threshold alarms |
| Gateway / Server Compatibility | Standard LoRaWAN® gateways/network servers |
| IoT Platforms | Milesight IoT Cloud; Milesight Development Platform |
| Power Supply | 1 × 1,650 mAh ER14335 Li-SOCl₂ battery |
| Battery Life – EU868 SF7 | Approximately 4.2 years (OEM laboratory conditions) |
| Battery Life – EU868 SF10 | Approximately 2.4 years (OEM laboratory conditions) |
| Battery Test Conditions | 30-minute reporting + 30 events daily at 25°C; actual battery endurance varies |
| Operating Temperature | −20°C to +60°C |
| Operating Humidity | 0–90% RH, non-condensing |
| Ingress Protection | IP30 |

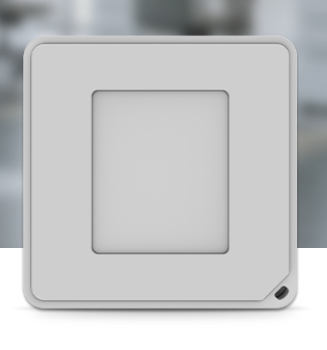

| Enclosure Material | Flame-retardant polycarbonate |
| Enclosure Colour | White |
| Sensor Dimensions | 50 × 50 × 23.8 mm |
| PIR Lens Diameter | Ø 17.2 mm |
| Device Weight | 40 g (including battery) |
| Installation | Flat surface; screws or 3M mounting tape |
| OEM Regulatory Approvals | CE, FCC, LoRaWAN® Certified |
| OEM Environmental Compliance | RoHS |
| OEM Safety Standard | EN62368-1 |
| Warranty – TwoElectrons | 1 year |
| India Frequency Advisory | EU868 is different from IN865; check device configuration and applicable radio authorization prior to use in India |
Product Features
- Uses passive infrared (PIR) motion detection with a Fresnel lens to detect occupancy changes in indoor rooms.
- Maximum detection range is 8 m and is installation-dependent.

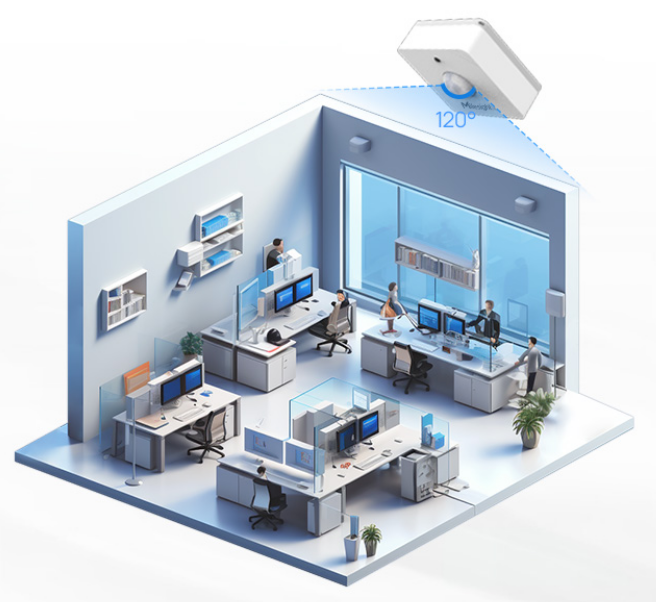

- Wide PIR detection angles: 120° horizontal coverage and 100° vertical coverage.
- Light status sensor classifies the environment as Bright or Dark.
- Bright / Dark classification threshold can be defined over the 1–60,000 lux range.

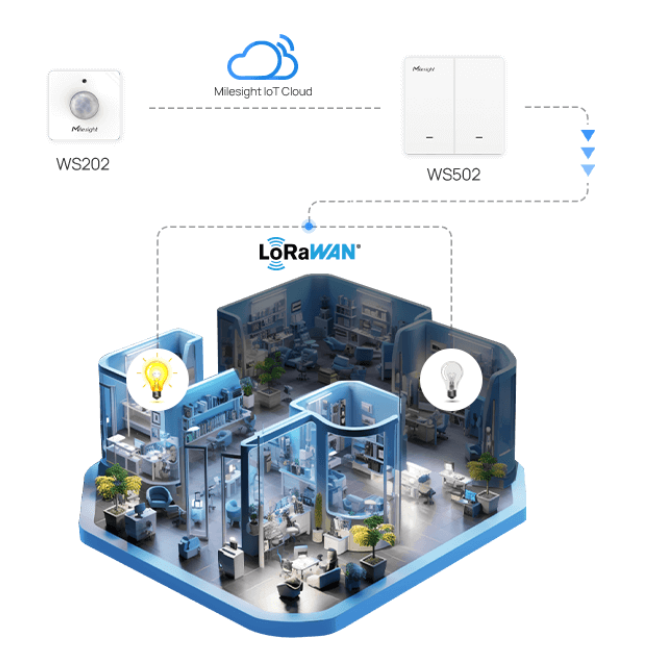

- Combining light thresholds and detected movement supports context-sensitive lighting-control scenes.
- WS202-868M is specified as an EU868 / 868 MHz radio variant; the exact shipped frequency must be verified.
- Milesight WS202 family includes alternative CN470, IN865, RU864, US915, AU915, KR920 and AS923 variants.
- 868 MHz transmit power is 16 dBm; receiver sensitivity is −137 dBm at 300 bps.
- Supports LoRaWAN OTAA/ABP Class A communication and an internal antenna.
- LoRaWAN range may reach up to 15 km under clear line-of-sight conditions; indoor range is lower and environment-dependent.
- Milesight D2D supports ultra-low-latency communication and direct control with other supported Milesight nodes without a LoRaWAN gateway.
- Compatible with standard LoRaWAN gateways/network servers and Milesight IoT Cloud or Development Platform.
- Device setup and changes are performed locally using a compatible mobile app over NFC; the supplied datasheet does not specify remote configuration by downlink.
- Built-in NFC supports convenient provisioning and card-emulation mode.
- Threshold alarms and Milesight D2D controller features enable building automation.
- Power is provided by one 1,650 mAh ER14335 lithium thionyl chloride (Li-SOCl₂) battery.
- Manufacturer EU868 laboratory battery life: about 4.2 years at SF7 or 2.4 years at SF10 with 30-minute reporting, 30 triggers/day and 25°C.
- Internal status indicator: one LED; one internal reset button.
- Temperature tolerance −20°C to +60°C; relative humidity 0–90% (non-condensing).
- IP30 white anti-flaming polycarbonate housing designed for indoor deployment.
- Unit dimensions 50 × 50 × 23.8 mm, Fresnel lens diameter 17.2 mm and device weight 40 g including battery.
- Install on a flat surface with screws or 3M adhesive mounting tape.
- OEM datasheet lists CE, FCC, RoHS, LoRaWAN® Certified and EN62368-1 safety compliance.
Package Includes
- 1 × Milesight WS202-868M LoRaWAN PIR & Light Sensor
- Power source specification: 1 × 1,650 mAh ER14335 Li-SOCl₂ battery; verify supplied battery/installed condition with OEM packing list
- Flat-surface mounting uses screws or 3M adhesive tape; actual supplied accessories must be checked against the shipment packing list
Frequently Asked Questions
What is the Milesight WS202-868M PIR & Light Sensor used for?
What are the PIR detection range, detection angles and light sensing capabilities?
What battery does the WS202 use, and how long does it last?
Which wireless protocols and setup options does WS202-868M support?
What is included with the WS202-868M and how is it installed?
Other Information
Warranty Information
1 Year Seller Warranty
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- PIR motion and indoor occupancy sensing using passive infrared technology with Fresnel lens
- Maximum motion detection distance of 8 m (typically 6–8 m depending on placement)
- Wide detection field of 120° horizontal × 100° vertical
- Integrated ambient light sensor with configurable Bright / Dark threshold (1–60,000 lux)
- Combines light status with occupancy events for smart lighting and scene control
- LoRaWAN® wireless communication on the WS202-868M (EU868 / 868 MHz) variant
- Supports Milesight D2D low-latency direct device control without a gateway for compatible devices
- Up to 15 km LoRaWAN® line-of-sight communication under ideal conditions
- One-touch NFC configuration through Milesight ToolBox mobile app
- Works with standard LoRaWAN gateways, network servers, Milesight IoT Cloud and Development Platform
- OTAA / ABP Class A network mode with internal antenna
- One 1,650 mAh ER14335 Li-SOCl₂ battery; approx. 4.2 years at SF7 EU868 in OEM tests
- Compact 50 × 50 × 23.8 mm flame-retardant polycarbonate enclosure, IP30 for indoor use
- Easy flat-surface mounting with screws or 3M adhesive tape
- Suitable for smart buildings, homes, offices, schools and indoor warehouses
