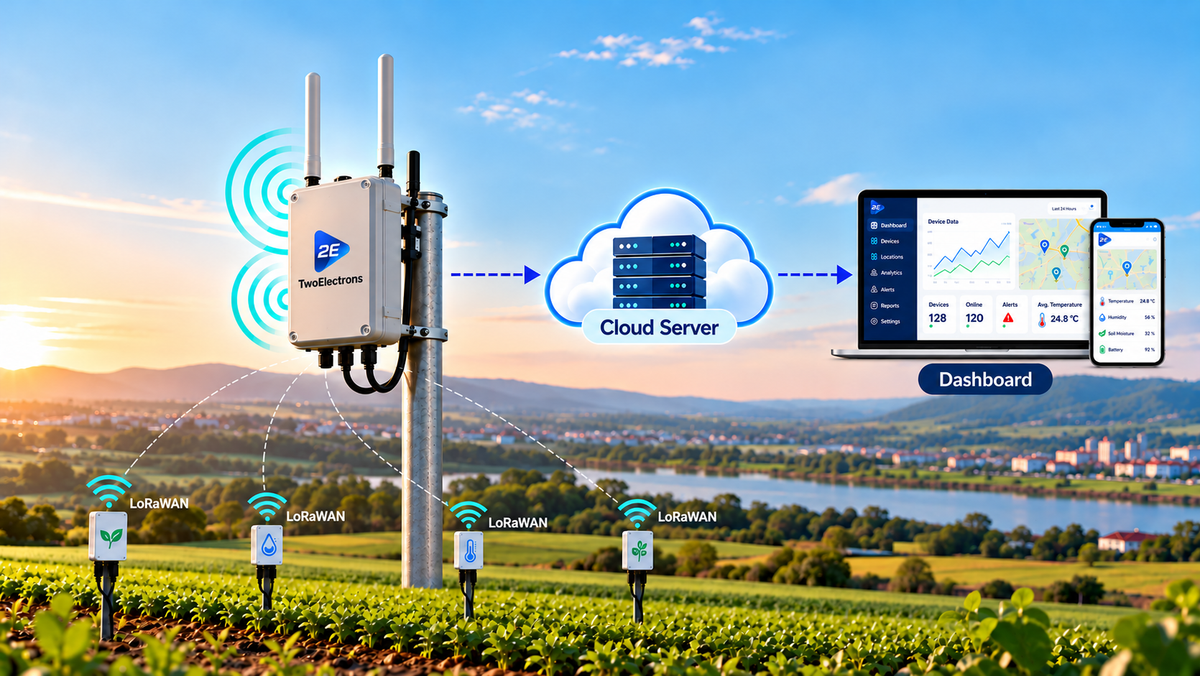

Imagine a farm with 200 soil sensors spread across 500 acres. Each one runs on a small battery for years, and none of them has Wi-Fi. So how does the data from these sensors get to your dashboard? The answer is a LoRaWAN gateway.
A LoRaWAN gateway listens to sensors over long-range radio and passes their data to the internet. In this article, we explain what it is, what its primary function is, how it works, which types exist, and what to look for before you buy one. If you are planning an IoT project, treat this page as your starting point, whether you are building in the US, India, or any other region.
What Is a LoRaWAN Gateway?
A LoRaWAN gateway, also called a LoRa (Long Range) gateway, is a radio device that receives messages from wireless sensors and forwards them to a network server over an internet connection. It also works in reverse, sending commands from the server back to the devices.
Two terms are often mixed up:
- LoRa is the radio modulation technique developed by Semtech. It defines how a signal travels through the air.
- LoRaWAN is the network protocol built on top of LoRa. The LoRa Alliance manages it, and it defines how devices, gateways, and servers communicate, including security.
The gateway sits between the two worlds. On one side it speaks to LoRa radio devices. On the other side, it uses ordinary IP (Ethernet, Wi-Fi or cellular) to reach the cloud.
What Is the Primary Function of a LoRaWAN Gateway?
In practice, that job covers four tasks:
- Receiving on many channels at once. A gateway can hear many devices at the same moment, on different frequencies and data rates.
- Forwarding uplink data. It adds details such as signal strength and a timestamp, then passes the packet to the network server.
- Sending downlink messages. When the server needs to reach a device, for example to confirm a message or change a setting, the gateway transmits it at the right moment.
- Staying transparent. The gateway does not read the sensor data. Decryption and security checks happen on the server side.
This design has a useful side effect. Sensors are not paired to one gateway, so any gateway in range can pick up a message. If two gateways hear the same packet, the network server removes the duplicate packet. That is why you can add another gateway later to improve coverage without touching your sensors.
How a LoRaWAN Gateway Works, Step by Step
LoRaWAN uses a “star-of-stars” layout. LoRaWAN sensors connect to gateways, and gateways connect to a central server.
Most sensors are Class A devices. They open two short receive windows right after sending a message, and the gateway can only deliver a downlink inside those windows. Keep this in mind when you plan how quickly your system must react to commands.
What Is Inside a LoRaWAN Gateway?
- LoRa concentrator. The radio core. Many gateways use Semtech chips such as the SX1302 or SX1303, which can listen on eight channels at the same time.
- Antenna. It decides how far and how clearly the gateway hears. Outdoor models often use a detachable external antenna.
- Host processor. A small Linux-based board that runs the packet forwarder and manages the connection.
- Backhaul interface. Ethernet, Wi-Fi or LTE, often with Power over Ethernet (PoE) for easy installation.
- GPS module (optional). Useful for precise timing and location.
Types of LoRaWAN Gateways
Indoor Gateways
Indoor gateways are compact, low cost, and easy to power. They work well in offices, labs, warehouses, and campus buildings, where they cover a floor or a group of rooms.
Outdoor Gateways
Outdoor gateways are built with weatherproof enclosures, surge protection, and higher-gain antennas. Mounted on a pole or rooftop, they cover far larger areas such as farms, industrial sites and small towns.
Multi-Channel and Single-Channel Gateways
A multi-channel gateway, usually 8 or 16 channels, is built for real deployments. Single-channel gateways listen on only one frequency and are not fully compliant with LoRaWAN, so keep them for learning and tests.
Gateways with a Built-In Network Server
Some models run a network server such as ChirpStack on the device itself. They work well for private networks or sites with weak internet, while cloud-connected gateways are easier to scale across many locations.
LoRaWAN Gateway Frequency Bands: US, India and Other Areas.
Frequency is the first thing to check. LoRaWAN uses unlicensed bands that differ by region, and a gateway built for one region will not work properly with devices made for another.
These are the main plans:
| Region | Frequency plan | Band |
|---|---|---|
| United States and Canada | US915 | 902–928 MHz |
| India | IN865 | 865–867 MHz |
| Europe | EU868 | 863–870 MHz |
| Australia | AU915 | 915–928 MHz |
Other regions, including parts of Asia, use plans such as AS923. Always check the plan for the country where you will install the gateway.
In the United States and Canada, LoRaWAN runs in the 902–928 MHz ISM band under FCC Part 15 rules. The US915 plan defines 64 uplink channels of 125 kHz, 8 uplink channels of 500 kHz, and 8 downlink channels. These are grouped into 8 sub-bands, each with eight 125 kHz channels and one 500 kHz channel. An 8-channel gateway listens to one sub-band only, so your sensors must be set to the same sub-band.
In India, the IN865 plan uses the 865–867 MHz band, with three default channels at 865.0625, 865.4025 and 865.985 MHz. There are no US-style sub-bands to match, but you must still choose IN865 hardware and firmware.
The rule is the same everywhere: if the gateway and the device are set for different regions or channels, a new device will never connect. For example, a European 868 MHz gateway cannot serve US915 or IN865 devices.
Where Are LoRaWAN Gateways Used?
LoRaWAN suits devices that send small amounts of data over long distances while saving battery.
Common uses include:
The technology is growing quickly. In 22nd September 2026, the LoRa Alliance reported 150 million LoRaWAN connected devices deployed worldwide, with growth of about 25% CAGR. Gateways form the backbone of most of these networks.
Gateway vs Network Server vs End Device
| Component | Role | Reads your data? |
|---|---|---|
| End device | Senses data and transmits it over LoRa | Creates and encrypts it |
| Gateway | Receives radio packets and forwards them over IP | No |
| Network server | Removes duplicates, checks security, manages data rates | Network-layer only |
| Application server | Decrypts the payload and puts it to use | Yes |
LoRaWAN uses AES-128 encryption with separate network and application keys, so the gateway never sees your readable data.
How to Choose a LoRaWAN Gateway
Check these points before you buy: To choose the right gateway for your deployment, review the criteria below.
- Frequency plan. Match the gateway to your region: US915 for the US and Canada, IN865 for India, EU868 for Europe.
- Channel count. An 8-channel gateway fits the best for small and medium projects. Larger sites with heavy traffic may need 16 channels or more.
- Indoor or outdoor. Choose by where it will be mounted. Look for an IP-rated enclosure for outdoor use.
- Backhaul options. Ethernet with PoE is the most reliable. Choose LTE for remote sites without wired internet.
- Network server compatibility. Confirm it works with your platform, such as The Things Stack or ChirpStack, and supports the packet forwarder you plan to use.
- Power and environment. Check the operating temperature range and whether solar or battery backup is possible.
- Certification. Look for the approval your market requires, such as FCC in the US and WPC in India. LoRa Alliance certification is a bonus.
- Management and updates. Remote monitoring and firmware updates will save your time.
Frequently Asked Questions
01. Do I need one gateway for each sensor?
No. One gateway can serve many sensors, often hundreds, depending on how frequently they send data and how large the messages are.
02. Does a LoRaWAN gateway need internet access?
It needs a backhaul to reach the network server. If the server runs on the gateway or on your local network, you can operate without public internet.
03. How far can a LoRaWAN gateway reach?
Often a few kilometers in cities and much farther in open rural areas with line of sight. Results vary with antenna height, terrain and settings.
04. Is a LoRa gateway the same as a LoRaWAN gateway?
People use the terms interchangeably. Strictly, LoRa describes the radio layer and LoRaWAN the network protocol, so a LoRaWAN gateway supports the full protocol.
Final Thoughts
A LoRaWAN gateway is the link that turns low-power sensors into a connected system. Its primary function is simple: receive radio messages from devices, pass them to the network server, and carry replies back. Getting the basics right, especially the frequency plan for your region (US915, IN865 and so on), the sub-band where it applies, and the placement, saves a lot of trouble later.
This is the first article in our LoRaWAN series. Stay tuned for our upcoming articles, where we’ll share more useful insights and information about LoRaWAN and its applications.
