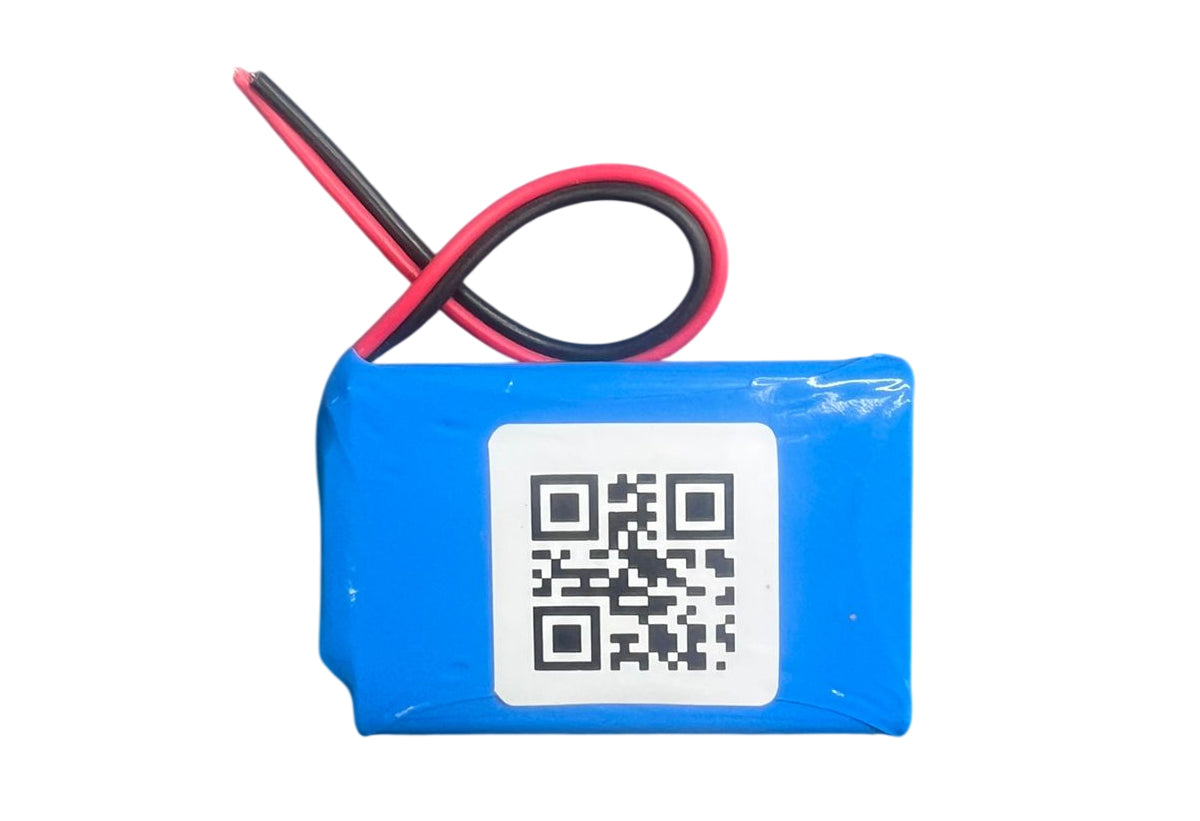

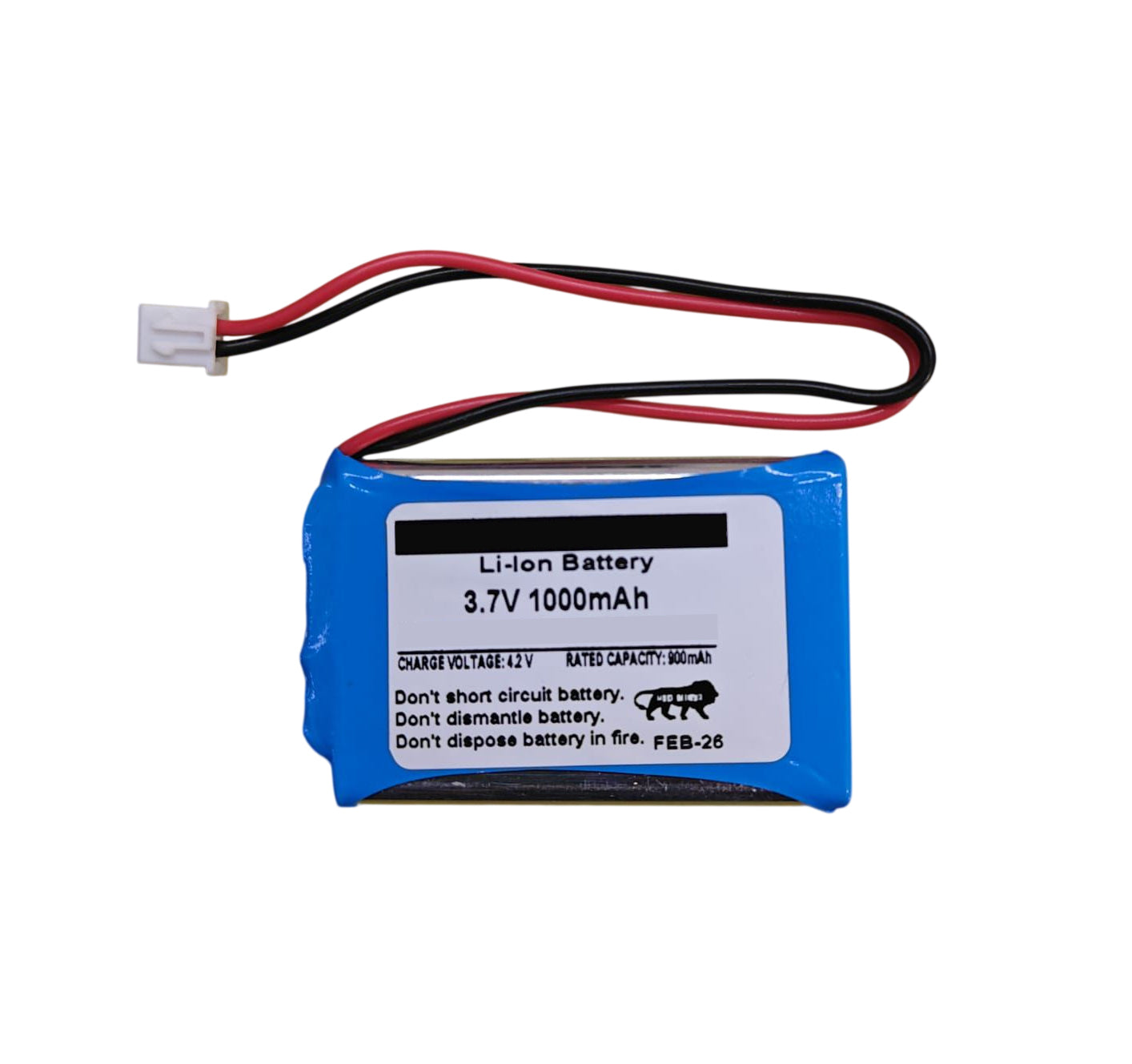

Battery Li-Ion 3.7 V 1000mAh / 1100mAh / 1200mAh

No reviews yet

TwoElectrons

products

Low Stock, 10 left

Battery Li-Ion 3.7 V 1000mAh / 1100mAh / 1200mAh

Product Description

Li-Ion 3.7V, V 1000mAh / 1100mAh / 1200mAh Battery Pack with Protection Circuit

Product Specifications

Nominal Voltage	3.7Volt
Battery Capacity	Typical 1000mAh Minimum 900mAh at 20 C
Battery Pack Dimensions	W – 6 mm * H – 35 mm * L – 50 mm Approx
Charging	4.20Volts CC/CV
Standard Charging	4.2V, 500 mA for 4Hrs (Max 1A)
Discharging	1A Max
Standard Discharging	500 mA
Dimensions PCM	L-14mm X W-4mm X H-2.5mm
Charge Rate	1A Continuous
Discharge Rate	2A Continuous, Pulsated 4 A max
Protections	Over Charge cut-off at 4.30V Approx, Deep Discharge cut-off at 2.30V Approx, Short Circuit Protection (No Reverse Charge Protection)
Operating Temperature - Charge	-0 C - +45 C
Operating Temperature - Discharge	-10 C - +60 C
Cell Used	Prismatic Type
Weight	20 grams Approx
Termination/ Connector	Loose Wire Insulated at Terminations (NO CONNECTOR)
Wire Gauge & Length	7 x 36 (Outside Battery Pack)

Product Features

Low Resistance and self discharge
Small size and light weight
Long Life Span
Light Plastic Packing with excellent heat relieving
Contains Battery Protection Board
Voltage: 3.7v to 72 v • Capacity: 450mAh~200Ah
Easy Expend the Battery Pack capacity
Higher structure’s energy-dense
Less Internal resistance From packs
Price cost Lower

Docs & Resources

Datasheet

Download PDF

Other Information

The above Wire is for reference, Connector can be used for OEM orders
Take our approval for higher Charge/ Discharge rates than above limits, send us written actual current (continuous, peak, pulse) and temperature data of end application.
The battery must be recharged Immediately after usage/ kept unused for 2 months.

Applications:

Hand Held Terminals
Solar Street Lights/ Bulb/ Other
GPS/ VTS
Security Equipments
Medical Equipments
Defence Equipmets
Bluetooth Speakers
Electric Vehicles
Robotics
Other Electronic Devices

Country of Origin: India

Warranty Information

6 Months Seller Warranty:

This item is covered with a standard warranty of 6 months from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.

What Voids Warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Shipping & Returns Policy

Shipping Policy:

Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.

Return & Refund Policy:

Return window: 7 days from receipt unless stated otherwise.
No refunds or replacements after the return window.
Returns are accepted only for non-working or damaged products.
Initiate return requests from here: Return Request or contact us at 09831070550.
Refunds are processed within 3-4 working days after inspection and approval.

Battery Li-Ion 3.7 V 1000mAh / 1100mAh / 1200mAh

Main Features

Li-Ion 3.7V, 1000mAh Battery Pack with Protection Circuit
Typical 1000mAh Minimum 900mAh at 20 C
4.20Volts CC/CV
For Safety Low battery Cut-off around 3.00V must be provided in Equipment Design by OEM
