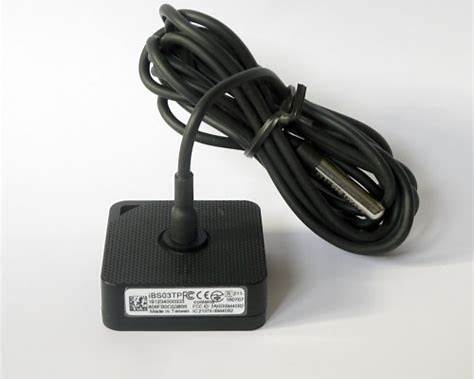

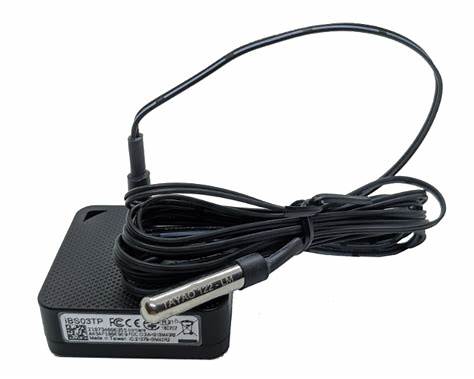

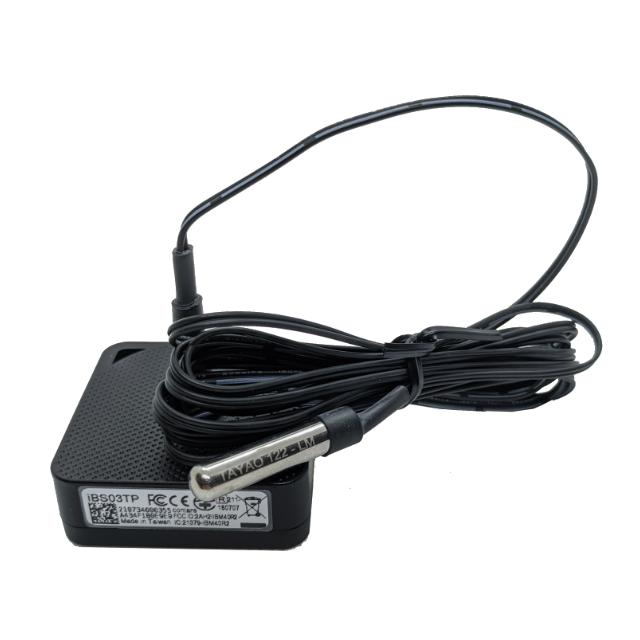

iBS03TP – Temperature Probe Sensor Beacon
No reviews yet
Lead Time
Product Description
The iBS03TP is a waterproof Bluetooth® Low Energy (BLE) temperature probe sensor beacon designed for industrial monitoring, cold chain logistics, refrigerators, freezers, laboratories, and harsh environment sensing applications. It features an external 2-meter temperature probe for accurate temperature monitoring in locations where the main beacon unit cannot be installed directly
Product Specifications
| Key Specifications | |
| Product Model | iBS03TP |
| Sensor Type | External Temperature Probe Sensor |
| Wireless Technology | Bluetooth® Low Energy (BLE 5) |
| BLE Support | BLE 4.2 & BLE 5 Long Range |
| Maximum BLE Range | Up to 100 meters (Line of Sight) |
| Frequency Band | 2.4 GHz |
| Battery Type | CR2450 x 1 |
| Battery Life | Up to 3.2 years (30s interval) |
| Waterproof Rating | IPx7 |
| Main Unit Operating Temperature | -20°C to 75°C |
| Probe Measurement Range | -50°C to 150°C |
| Probe Cable Length | 2 meters |
| Probe Size | 30mm × 6mm |
| Processor | ARM Cortex-M3 32-bit |
| Transmit Power | Up to +5 dBm |
| Receiver Sensitivity | -97 dBm @1Mbps |
| Dimensions | 43mm × 43mm × 14.8mm |
| Drop Protection | Up to 2 meters |
| Configuration | Android Beacon Utility |
| Certifications | FCC / IC / TELEC / CE / NCC |
Product Features
- External 2-meter temperature probe for remote sensing applications
- Wide temperature measurement range from -50°C to 150°C
- Bluetooth® Low Energy 5 with Coded PHY long-range support
- Up to 100 meters wireless communication range in open space
- Waterproof IPx7 industrial-grade enclosure
- Rugged design suitable for harsh industrial environments
- Up to 3.2 years battery life using CR2450 battery
- Real-time wireless temperature monitoring and transmission
- Compact main unit for flexible installation outside extreme temperature zones
- Designed for refrigerators, freezers, and RF-shielded environments
- Supports cold chain logistics and HACCP monitoring applications
- Internal temperature sensor and external probe sensor support
- Fast BLE advertising with configurable intervals from 100ms to 1 minute
- Android application support for configuration and management
- Internal power ON/OFF switch
- ARM Cortex-M3 32-bit processor
- Durable enclosure with 2-meter drop protection
- Suitable for industrial machine and liquid tank monitoring
- Supports BLE gateways and IoT monitoring platforms
- FCC / IC / TELEC / CE / NCC certified
- Low-power operation optimized for long-term deployments
- Accurate temperature logging for pharmaceutical and food storage
- IP67 waterproof protection against temporary immersion
- Compact probe sensor design for narrow or enclosed environments
Package Includes
- iBS03TP Temperature Probe Sensor Beacon
- External Temperature Probe with 2-meter Cable
- Pre-installed CR2450 Battery
- Mounting Adhesive Tape
- Mounting Screws
- User Guide / Quick Installation Manual
