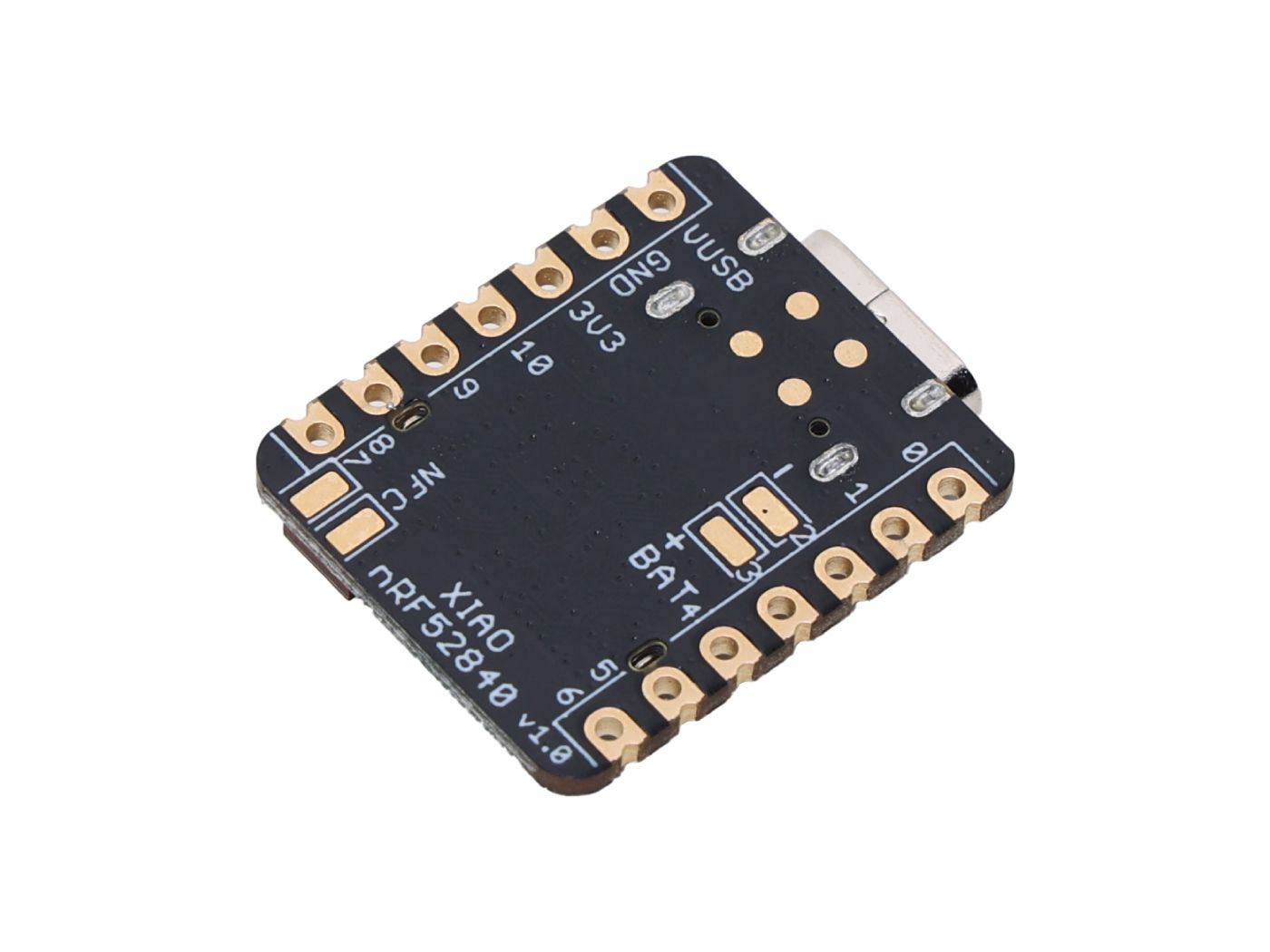

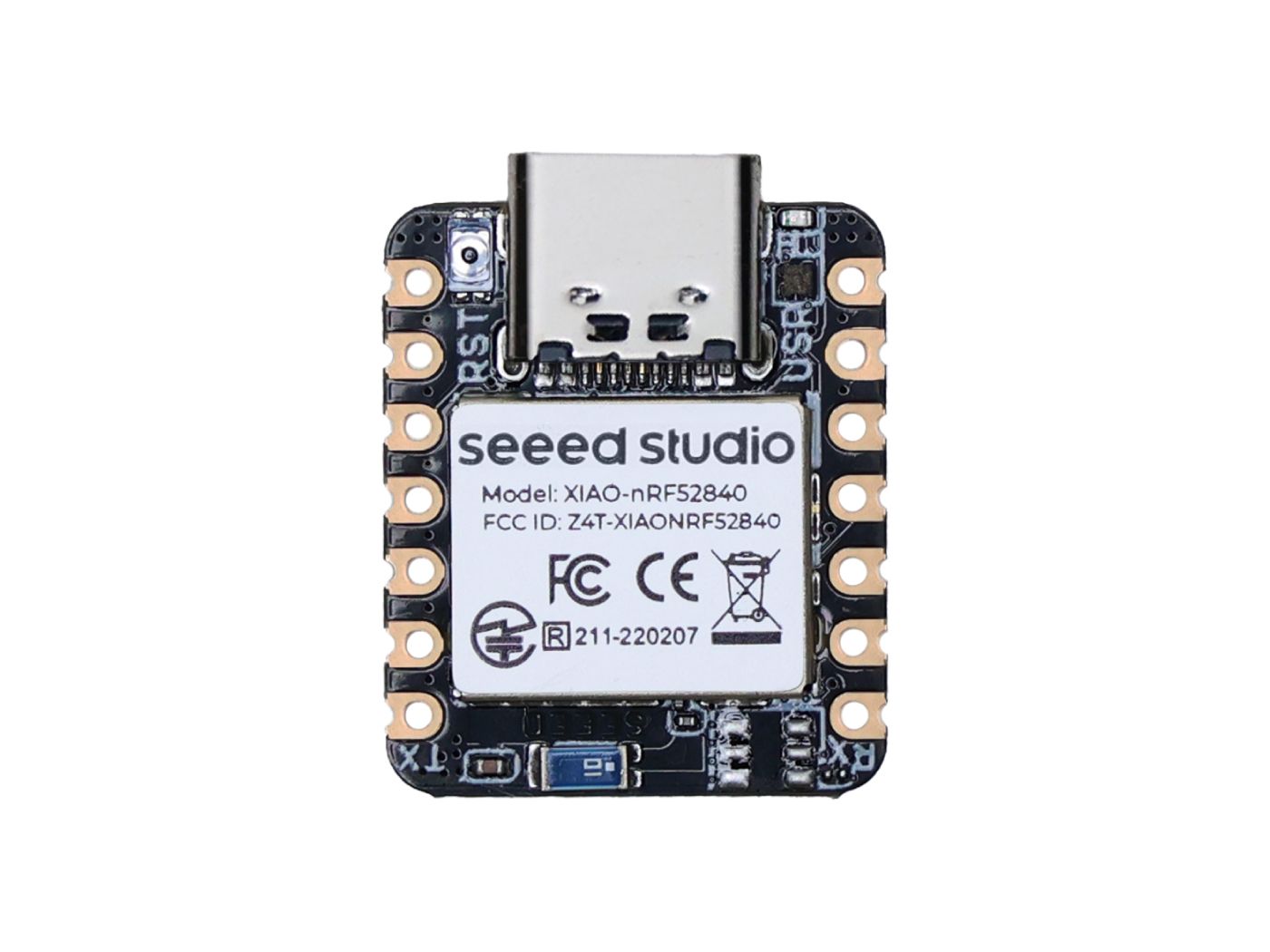

Seeed Studio XIAO nRF52840 (XIAO BLE)
No reviews yet
Out of Stock
Product Description
Seeed Studio XIAO nRF52840 by Nordic is carrying wireless capability for the first time and it supports Bluetooth Low Energy 5.4, also able to operate with low power consumption. It will be your best microcontroller for Bluetooth applications.
Product Specifications
| Processor | Nordic nRF52840 , ARM® Cortex®-M4 with FPU runs up to 64 MHz |
| Wireless | Bluetooth Low Energy 5.4/Bluetooth mesh/NFC |
| On-chip Memory | 1 MB flash and 256 kB RAM |
| Onboard Memory | 2 MB QSPI flash |

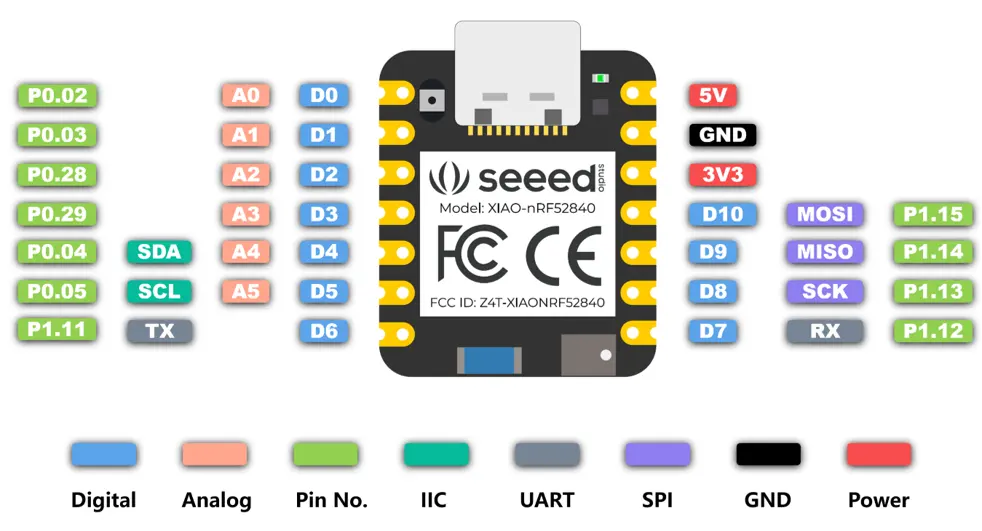

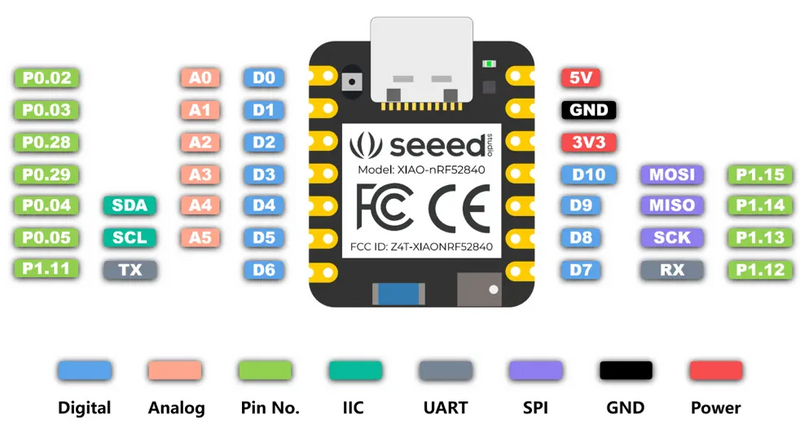

| Interface | 1xUART, 1xIIC, 1xSPI, 1xNFC, 1xSWD, 11xGPIO(PWM) 6xADC |

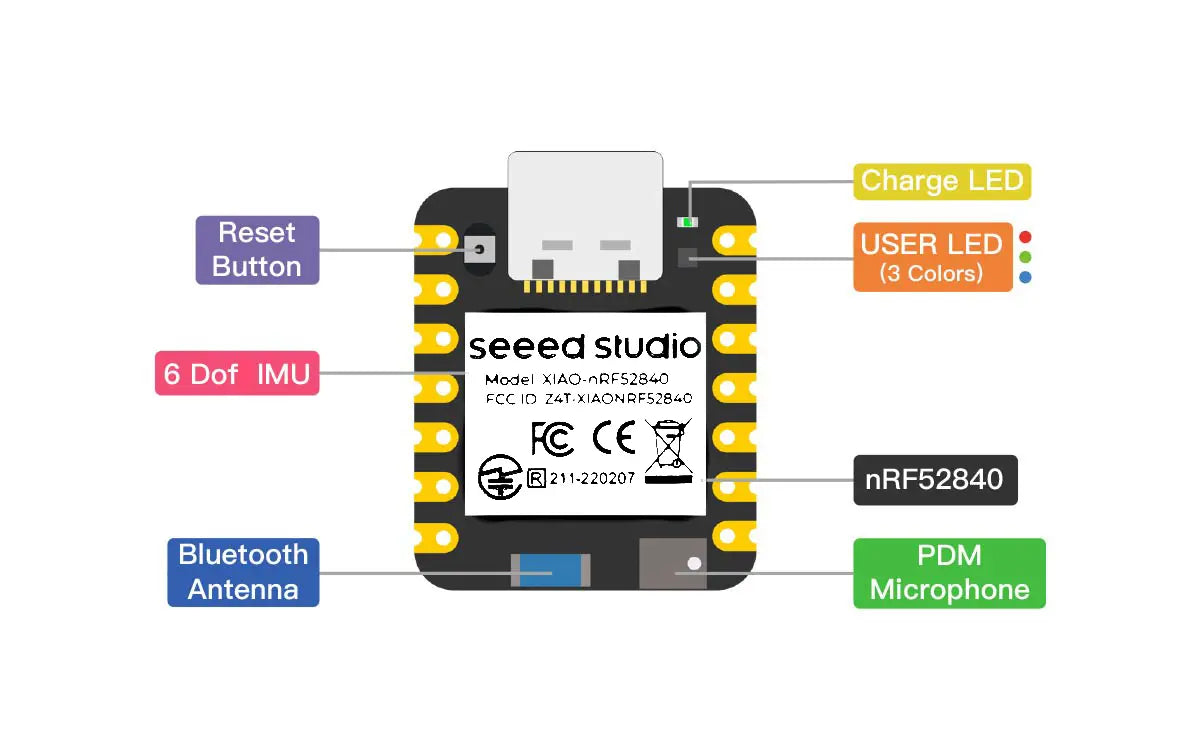

| Sensors | 1xOnboard PDM digital microphone, 1xOnboard 6-axis IMU |

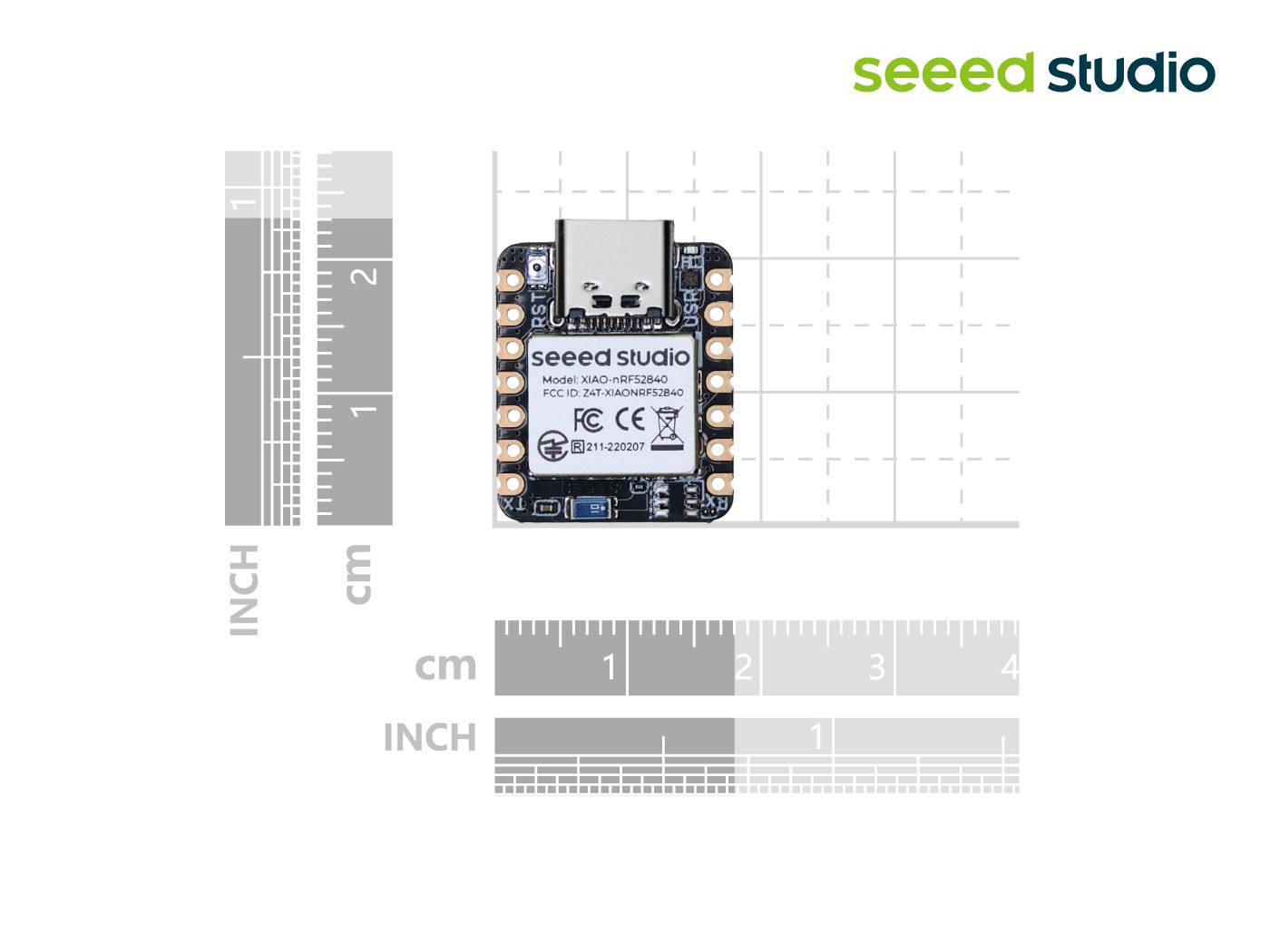

| Dimensions | 21 x 17.8mm |
| Power(Typ.) | Circuit operating voltage: 3.3V@200mA, Charging current: 50mA/100mA,Input voltage (Type-C): 5V, Input voltage (BAT): 3.7V, Standby power consumption: 5μA |
Product Features
- Versatile Microcontroller: Incorporate the Nordic nRF52840 chip with FPU, operating up to 64 MHz, mounted multiple development ports, supported by Arduino / CircuitPython / Micropython
- Wireless Capabilities: Implement Bluetooth Low Energy 5.4, BLE functions with onboard antenna, also provide NFC connectivity
- Elaborate Power Design: Provide ultra-low power consumption as 5 μA in deep sleep mode while supporting lithium battery charge management
- Thumb-sized Design: 21 x 17.8mm, Seeed Studio XIAO series classic form-factor, suitable for wearable devices

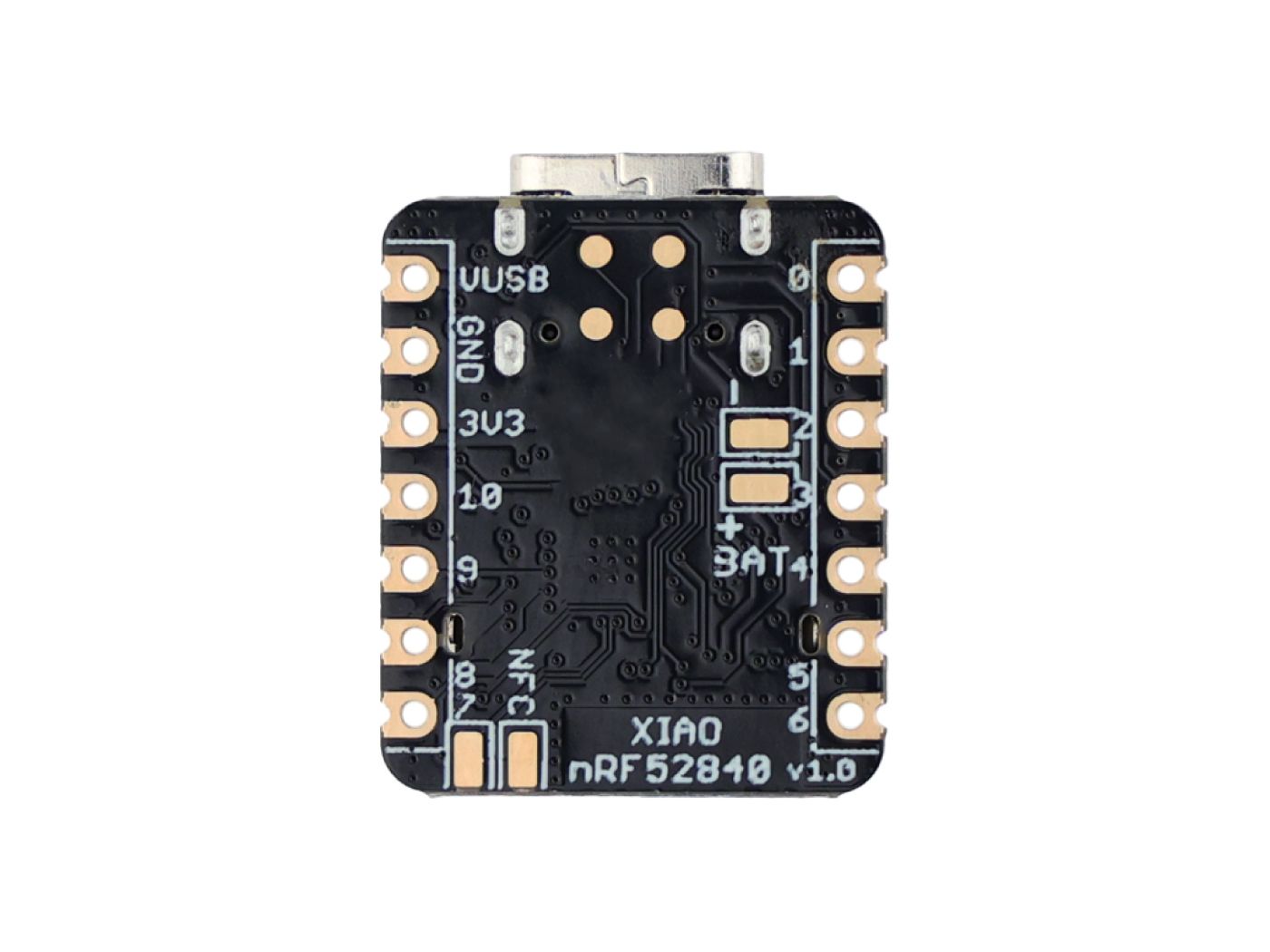

- Perfect for Production: Breadboard-friendly & SMD design, no components on the back
- Production-Ready Design with Fusion PCBA Support All Seeed Studio XIAO dev boards feature a production-optimized SMD (Surface Mount Device) design with standardized stamp holes, making it perfect for commercial PCBA (Printed Circuit Board Assembly) integration. Through our Fusion PCBA Sponsorship program, you can not only enjoy the lowest unit prices for all XIAO modules from our Fusion Open Parts Library, but also fabricate and scale your XIAO-based PCBA designs at low cost (30% off) with FREE Design for Manufacturing consulting services, streamlining your journey from prototype to production.
- Starter Kit with free Course for all Electronics Neophytes and Enthusiasts Seeed Studio has provided the Grove Starter Kit along with free and detailed courses for you quickly get started with microcontrollers and electronics, regarding all the Seeed Studio XIAO boards, promising you a great learning experience. Not only programming but also electronics knowledge is not required, you will be taken step by step, from understanding the basic concepts to exercising the simple projects individually, finally being able to build complex, interesting, wearable projects on your own, owing a practical electronic product prototype from the course.
Docs & Resources
Package Includes
- Seeed Studio XIAO nRF52840 (pin not included) - x1
- 7 Pin Header - x2
Other Information
Country of Origin: China
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Versatile Microcontroller: Incorporate the Nordic nRF52840 chip with FPU, operating up to 64 MHz, mounted multiple development ports, supported by Arduino / CircuitPython / Micropython
- Wireless Capabilities: Implement Bluetooth Low Energy 5.4, BLE functions with onboard antenna, also provide NFC connectivity
- Elaborate Power Design: Provide ultra-low power consumption as 5 μA in deep sleep mode while supporting lithium battery charge management
- Thumb-sized Design: 21 x 17.8mm, Seeed Studio XIAO series classic form-factor, suitable for wearable devices
