Product descriptions from the supplier

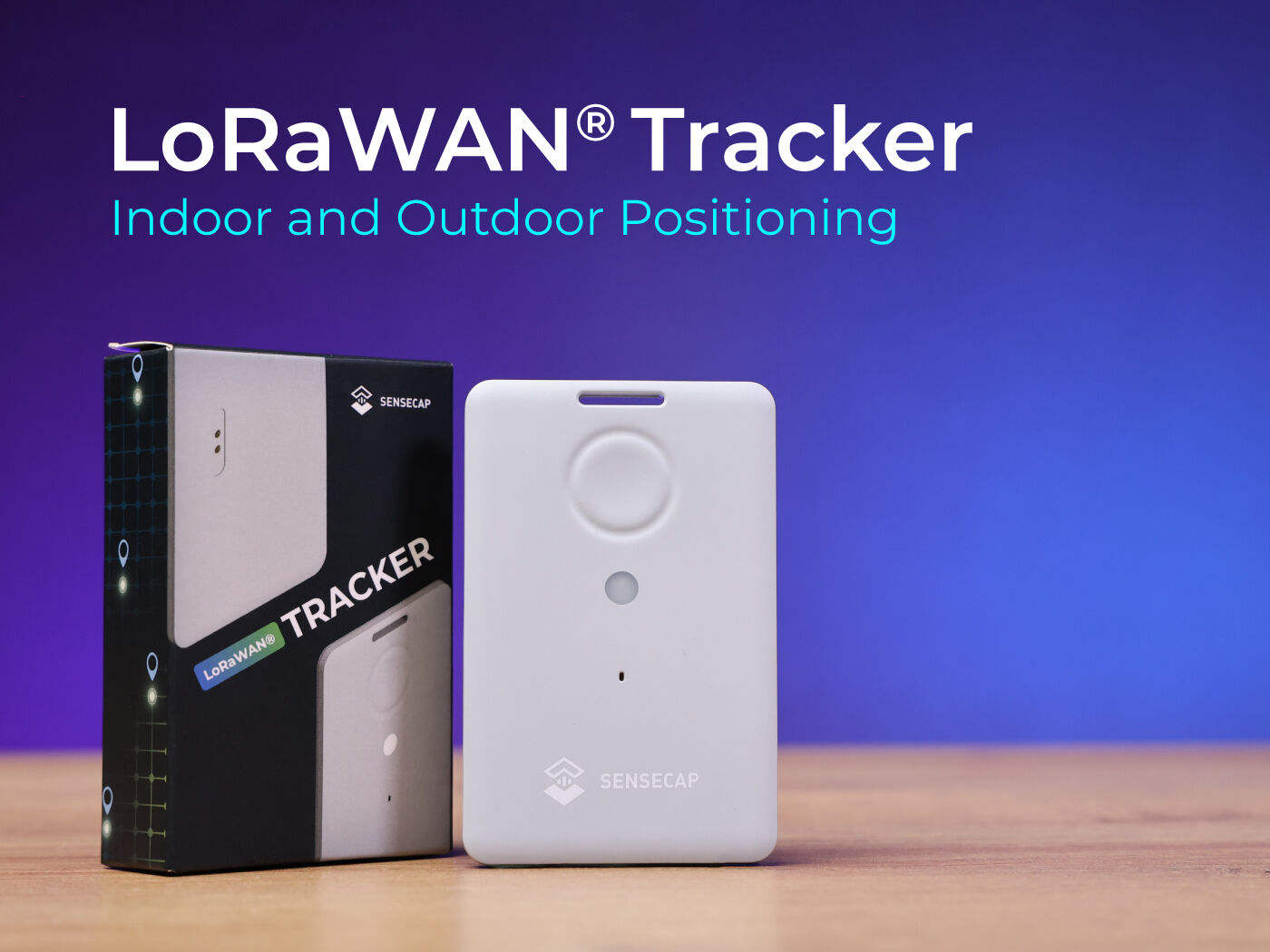

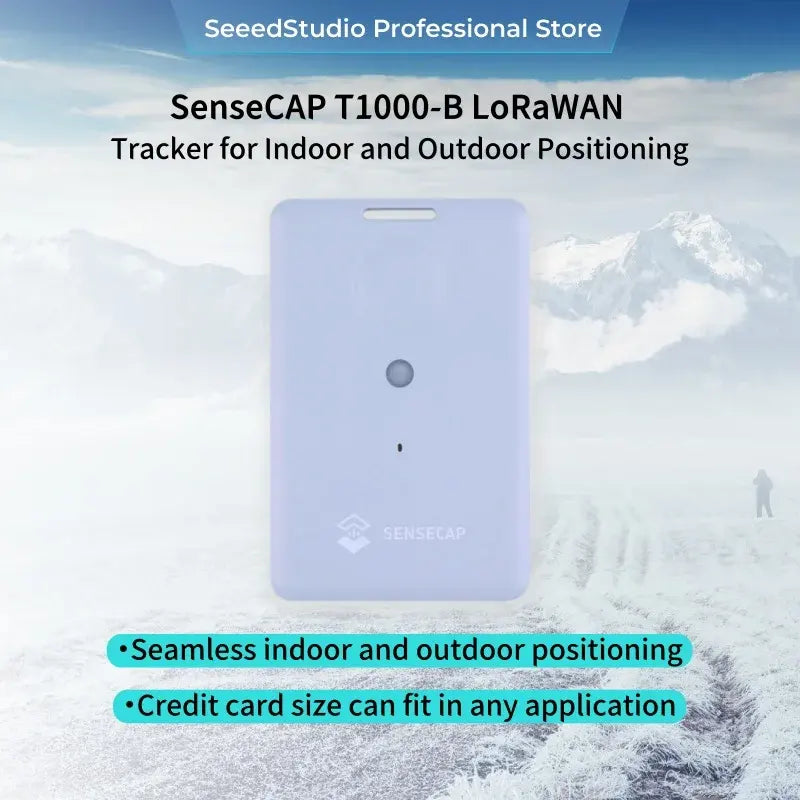

T1000 effectively employs BLE and Wi-Fi for pinpoint indoor positioning and utilizes GNSS technologies, including GPS, Beidou, Galileo, and GLONASS for precise outdoor tracking. At a mere 6.5mm thick, this small and slim tracker can easily slip into envelope-like spaces. T1000 is equipped with essential features, including a temperature sensor, light sensor, motion sensor, panic button, and buzzer.
The temperature sensor is ideal for monitoring temperature-sensitive goods like food, and the light sensor detects unpacking activities. This data can be utilized for compliance verification.
The motion sensor is useful in identifying if goods are in transit and monitoring potential physical damages. It can report statuses including shock, the start of the movement, the end of the movement, and motionless timeout. Such data can serve as a reference for insurance claims and logistics optimization.
The panic button switches the tracker to SOS mode, which sends data frequently to your platform and triggers the built-in buzzer to alert people nearby that an emergency has occurred. Using LoRaWAN, the communication costs are significantly lower compared to cellular networks like 4G, LTE Cat-M, and LTE Cat-1. This greatly lowers the barrier to entry for mass commercial use. For instance, with the same amount of data, using a SIM card on other networks could cost up to $3 while with LoRaWAN it is only $0.05. With magnetic charge design to enhance water resistance. (PS: Battery life depends on upload interval, work mode, etc., please refer to datasheet) T1000 is with industrial-grade design, equipped with IP65 waterproof protection. It's built to endure harsh environments, with a working temperature ranging from -20 to 60 (-4 to 140).
| General Parameters | |
|---|---|
| Product Model | T1000-A / T1000-B / T1000-C / T1000-D |
| Backhaul | LoRaWAN® (v1.0.4 Class A) |
| Bluetooth | Bluetooth v5.1 (Configuration via App) |
| LoRaWAN Channel Plan | IN865 / EU868 / US915 / AU915 / AS923 / KR920 / RU864 |
| Temperature | Range: -20 to 60°C Accuracy: ±1°C Resolution: 0.1°C |
| Light | 0–100% (0 = Dark, 100% = Brightest) |
| 3-Axis Accelerometer | Detects movement, shock, and motion state |
| LED & Buzzer | 1 × LED and 1 × Buzzer for status indication |
| Button | 1 × Button for operation and SOS event trigger |
| Antenna | Internal (GNSS / LoRa / Wi-Fi / BLE) |
| Communication Distance | 2–5 km (depends on gateway antenna, installation, and environment) |
| IP Rating | IP65 |
| Dimensions | 85 × 55 × 6.5 mm |
| Device Weight | 32 g |
| Operating Temperature | -20 to 60°C |
| Operating Humidity | 5% – 95% (No condensation) |
| Certification | CE / FCC / TELEC / RoHS / REACH |
| Location | |
| GNSS Constellation | T1000-A/B: GPS / GLONASS / Galileo / BeiDou / QZSS T1000-C/D: GPS / BeiDou |
| GNSS Sensitivity | -145 dBm (Cold Start) / -160 dBm (Tracking) |
| GNSS Location Accuracy | ~1 m CEP (GPS, -130 dBm) |
| Wi-Fi Positioning | Passive scanning, uploads 4 scanned MAC addresses |
| Bluetooth Positioning | Uploads 3 strongest Beacon MAC addresses |
| Data Cache | Stores up to 1000 records without LoRaWAN® coverage |
| Battery | |
| Battery Capacity | Rechargeable lithium battery, 700 mAh |
| Battery Life* | Up to 4 months (uplink every 1 hour, GNSS only) |
| Battery Monitoring | Periodic uplink of battery level |
| Charging Cable | USB magnetic charging cable (1 m, adapter not included) |
| Power Input Voltage | 4.7 – 5.5 V DC |
| Charging Temperature | 0 to 45°C (Charging is limited beyond this range; LED blinks rapidly) |
| Software | |
| Work Modes | Standby: Heartbeat uplink only Periodic: Location uploads at set intervals Event: Interval changes based on temperature, light, motion |
| Data Storage | Stores over 1000 location records when offline |
| App | Bluetooth App for configuration |
Detail product specifications
| Key Attributes | |
|---|---|
| Type | Development Board |
| Description | Indoor and Outdoor Positioning |
| Model Number | 114993106 |
| Place of Origin | Guangdong, China |
| Brand Name | Seeed Studio |
| Series | SenseCAP |
| Selling Units | Single item |
| Single Package Size | 10X6X3 cm |
| Single Gross Weight | 0.085 kg |
Items included in the box
- 1 x T1000-B Tracker
- 1 x Power Adapter
- 1 x Ethernet Cable
- 1 x Quick Installation Guide
Product warranty information
15 Days Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TechTel customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Product shipping & returns policy
Shipping Policy:
- All orders confirmed before 3:00 PM IST are shipped the same day, barring rare pickup delays on holidays or disturbances.
- Delivery time in Metro cities is 1–3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests via a Support ticket or contact us at 09830454555.
- Refunds are processed within 3-4 working days after inspection and approval.
