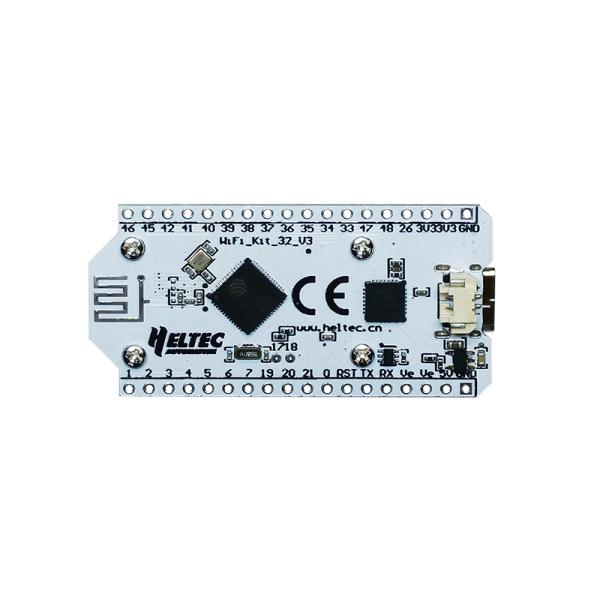

WiFi Kit 32 (V3)
No reviews yet
Out of Stock
Product Description
WiFi kit 32 is a classic IoT Dev-board designed&produced by Heltec Automation(TM), It’s a highly integrated product based on ESP32(including WiFI and BLE), Li-Po battery management system,0.96” OLED are also included. It’s the best choice for smart citites,farms homes,and IoT makers.
Product Specifications
| Master Chip | ESP32-S3FN8(Xtensa®32-bit lx7 dual core processor) |
| USB to Serial Chip | CP2102 |
| WiFi | 802.11 b/g/n, up to 150Mbps |
| Bluetooth LE | Bluetooth 5, Bluetooth mesh |
| Hardware Resource | 7*ADC1+2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI, etc. |
| Memory | 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash |
| Interface | Type-C USB; 2*1.25 lithium battery interface; 2*18*2.54 Header Pin |
| Battery | 3.7V lithium battery power supply and charging |
| Power Consumption | Deep Sleep 15uA |
| Operating Temperature | -20~70℃ |
| Dimensions | 50.2 * 25.5* 10.2 mm |

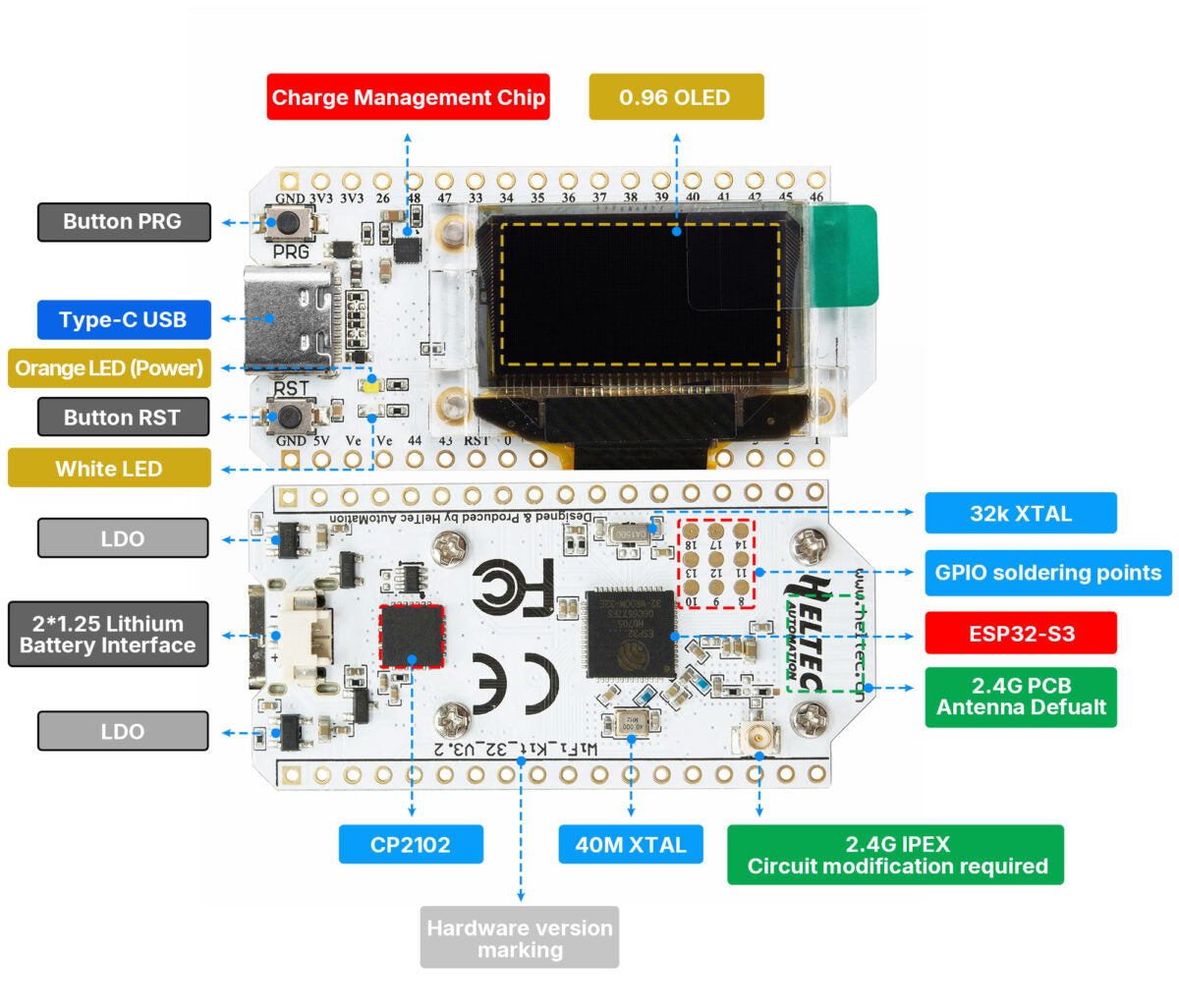

Product Features
- Microprocessor: ESP32-S3FN8 (Xtensa ® 32-bit LX7 dual-core processor, five-stage pipeline rack Structure, main frequency up to 240 MHz);
- Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures;
- Onboard SH1.25-2 battery interface, integrated lithium battery management system(charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching);
- Onboard Wi-Fi, Bluetooth 2.4GHz PCB antenna;

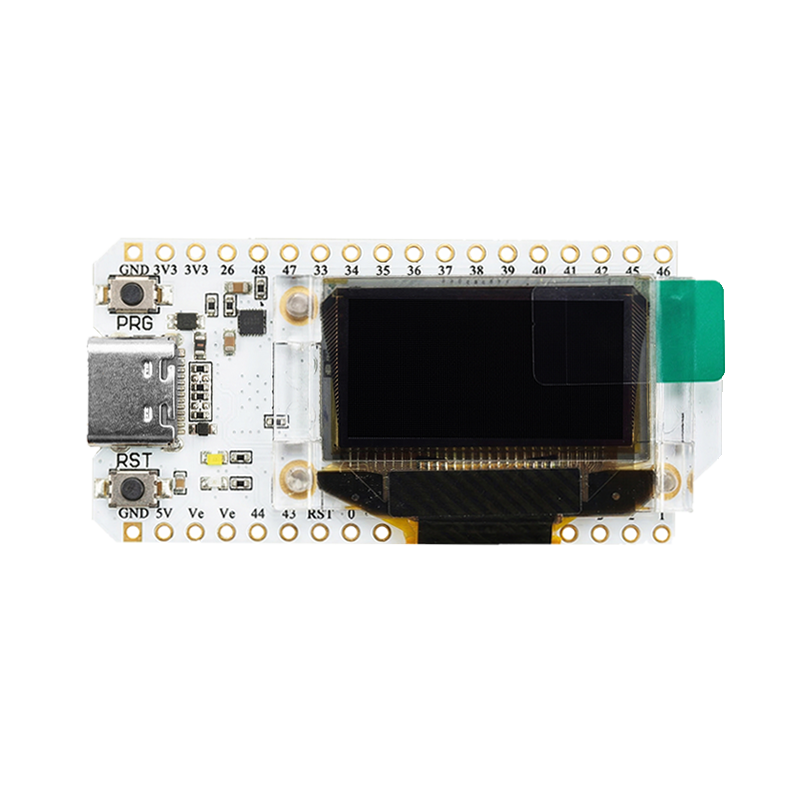

- Onboard 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power, and other information;
- Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing;
- Support the Arduino development environment;
Docs & Resources
Package Includes
- WiFi Kit 32 (V3) - x1
- SH1.25 x 2 battery cable - x1
Other Information
Country of Origin: China
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Microprocessor: ESP32-S3FN8 (Xtensa ® 32-bit LX7 dual-core processor, five-stage pipeline rack Structure, main frequency up to 240 MHz);
- Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures;
- Onboard SH1.25-2 battery interface, integrated lithium battery management system(charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching);
- Onboard Wi-Fi, Bluetooth 2.4GHz PCB antenna;
