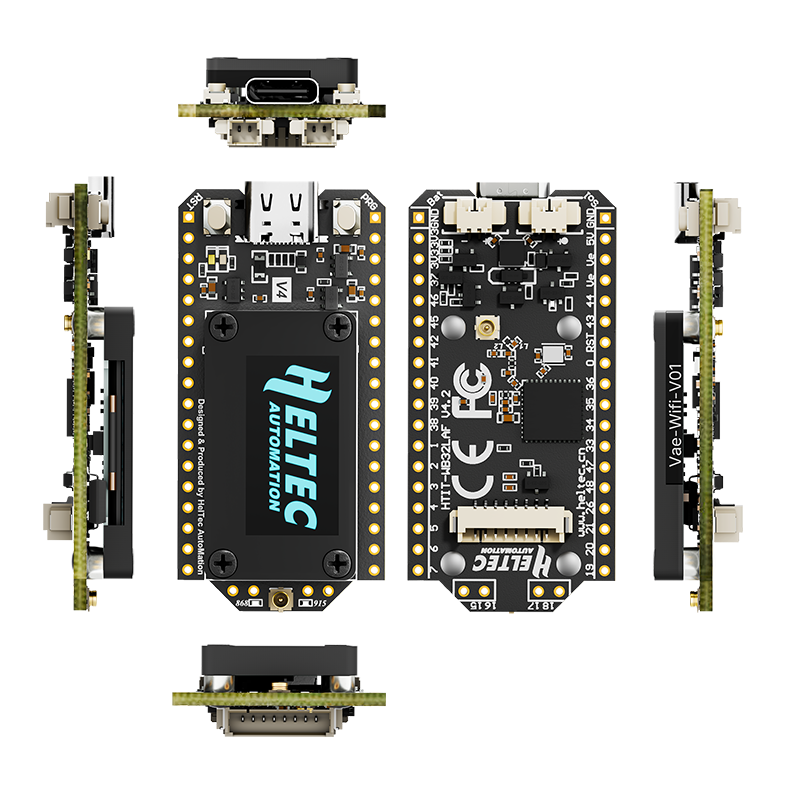

WiFi LoRa 32(V4.3.1), ESP32S3 + SX1262 LoRa Node, Meshtastic and LoRaWAN Compatible

Name: WiFi LoRa 32(V4.3.1), ESP32S3 + SX1262 LoRa Node, Meshtastic and LoRaWAN Compatible
Brand: TwoElectrons
SKU: 2EPTWO270
Availability: InStock

No reviews yet

TwoElectrons

products

Out of Stock

WiFi LoRa 32(V4.3.1), ESP32S3 + SX1262 LoRa Node, Meshtastic and LoRaWAN Compatible

Product Description

The WiFi LoRa 32 V4, the next gen to the Heltec V3, is a powerful, high-efficiency IoT maker board featuring an ESP32S3 MCU and SX1262 LoRa Node chip; retaining the V3’s size and identical pinout, it integrates performance upgrades including a built-in Wi-Fi/Bluetooth antenna, 28±1dBm LoRa output power, and a protected OLED display; its superior RF and stable system design ensure it’s ready-to-use and highly beginner-friendly, supporting development via Arduino, PlatformIO, ESP-IDF, and MicroPython; making it ideal for long-range wireless open-source projects like Meshtastic, LoRaWAN, and Meshcore in applications such as smart cities and industrial control, with custom hardware available on the Heltec MQB platform.

Product Specifications

MCU	ESP32-S3R2 (Xtensa®32-bit lx7 dual core processor)
LoRa Chip	SX1262
Frequency	High-power version: 863-928MHz
Max. TX Power	High-power version: 28 ±1 dBm, Low-power version: 21 ±1 dBm
Max. Receiving sensitivity	-137dBm@SF12 BW=125KHz
Wi-Fi	802.11 b/g/n, up to 150Mbps
Bluetooth	Bluetooth (LE), Bluetooth 5, Bluetooth Mesh
Hardware Resource	7ADC1 + 2ADC2; 7Touch; 3UART; 2I2C; 2SPI; etc.
Memory	384KB ROM; 512KB SRAM; 16KB RTC SRAM; 2MB PSRAM; 16MB Flash
Interface	Type-C USB; 1.252 Pin lithium battery interface; 1.252 Pin Solar interface; 1.25*8 Pin interface; LoRa ANT(IPEX1.0); 2.4G ANT(IPEX1.0)
Battery applicable	3.3-4.4V lithium battery
Operating Temperature	-20 ~ 70 ℃
Dimensions	51.7 * 25.4* 10.7mm

Product Features

Base on ESP32-S3R2 & SX-1262, supports Wi-Fi b/g/n, BLE, and LoRa communication.
2MB PSRAM and 16MB external Flash, more suitable for UI and complex system.
LoRa Transmit Power: High-power version 28 dBm, Low-power version 22 dBm
PC casing protects the screen and integrates FPC 2.4G antenna.
Form factor and pin compatibility with WiFi LoRa 32 V3.
PC casing protects the screen and integrates FPC 2.4G antenna.
Added 1.25-2Pin solar panel interface, and 1.25-8Pin GNSS interface
Optimized lithium battery management.
Low power consumption is less than 20μA.

WiFi LoRa 32(V4.3.1), ESP32S3 + SX1262 LoRa Node, Meshtastic and LoRaWAN Compatible - Additional Image 1

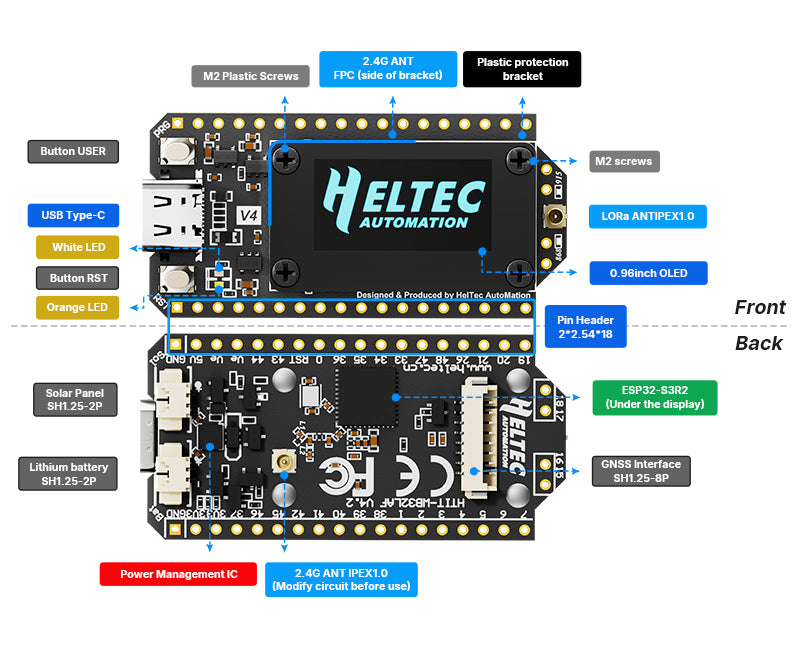

WiFi LoRa 32(V4.3.1), ESP32S3 + SX1262 LoRa Node, Meshtastic and LoRaWAN Compatible - Additional Image 2

Docs & Resources

User Manual

View resource

Schematic diagram

View resource

Datasheet

Download PDF

3D Model Diagram

View resource

Downloadable Resources

View resource

Heltec ESP32 Development Framework (Board Manager, Basic Examples)

View resource

Heltec ESP32 Extension Libraries (LoRa/LoRaWAN, Sensors, etc.)

View resource

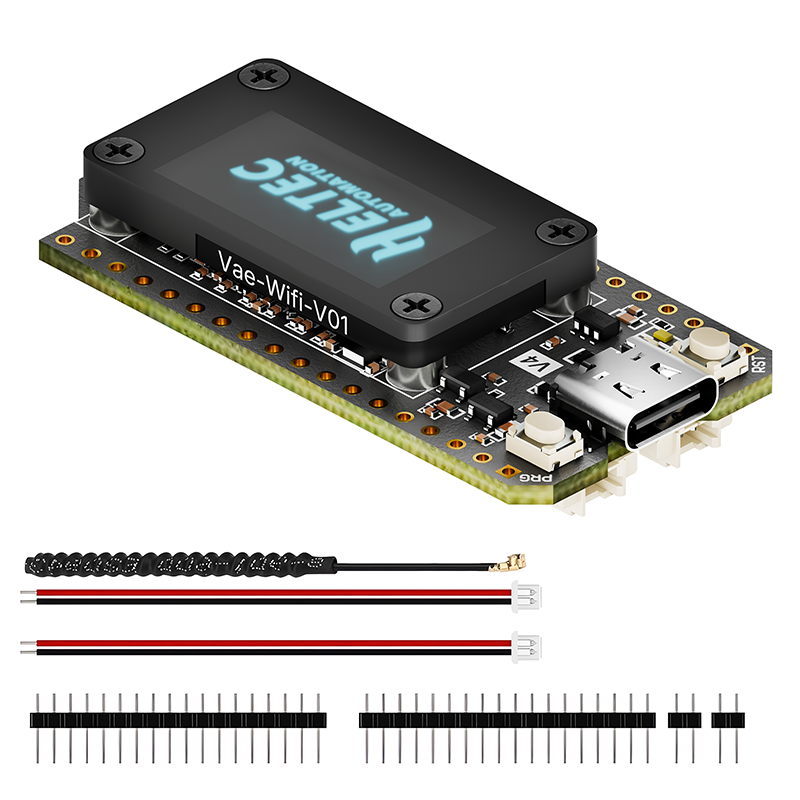

Package Includes

WiFi LoRa 32 (V4) - X1
LoRa Antenna - X1
1.25×2 Connector (for battery&solar) - X2
2.54*18 Header Pin - X2
2.54*2 Header Pin - X2

Other Information

What's this?

The all-new V4 version of the classic ESP32+LoRa development board WiFi LoRa 32.
The US (United States) Warehouse ships within the United States only.
The DE (Germany) Warehouse can ship to the continental Europe.

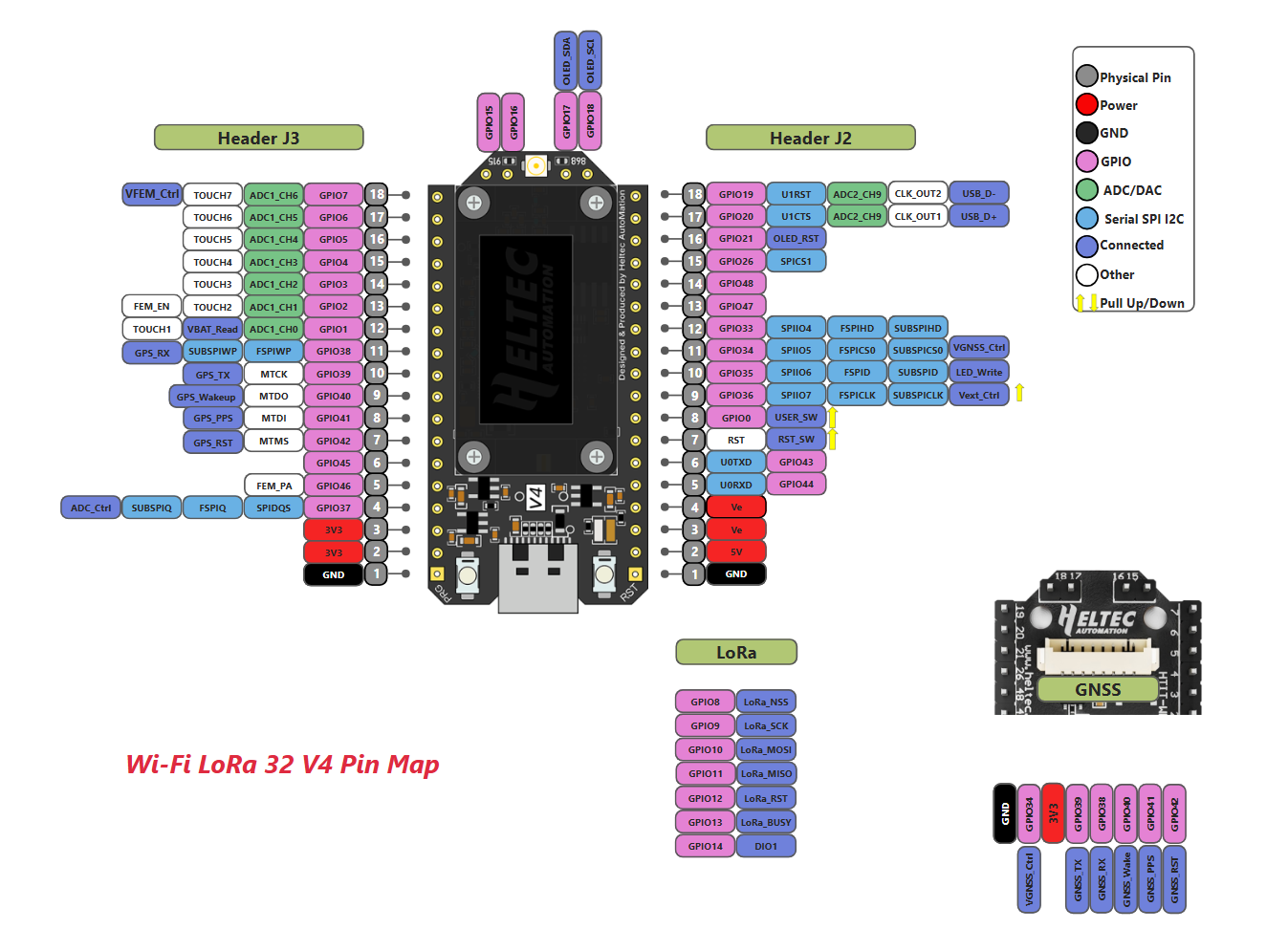

Compatible with V3 Pinout

Almost entirely retains the form factor and pin layout of V3, while adding additional pins. The pin plating process has been upgraded from silver plating to gold plating.

More Powerful MCU

The ESP32-S3R2 offers 2MB of PSRAM and is equipped with an external 16MB Flash, making the upgraded memory configuration more suitable for UI and complex system design.

More Peripheral Interfaces

• Added 1.25×2P solar panel interface, supports 4.7–6V solar input.
• Added 1.25×8P GNSS interface, GNSS power can be individually controlled.
• 1.25×2P lithium battery interface.

Country of Origin: China

Warranty Information

15 Days Seller Warranty:

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.

What Voids Warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Shipping & Returns Policy

Shipping Policy:

Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.

Return & Refund Policy:

Return window: 7 days from receipt unless stated otherwise.
No refunds or replacements after the return window.
Returns are accepted only for non-working or damaged products.
Initiate return requests from here: Return Request or contact us at 09831070550.
Refunds are processed within 3-4 working days after inspection and approval.

WiFi LoRa 32(V4.3.1), ESP32S3 + SX1262 LoRa Node, Meshtastic and LoRaWAN Compatible

Main Features

Base on ESP32-S3R2 & SX-1262, supports Wi-Fi b/g/n, BLE, and LoRa communication
2MB PSRAM and 16MB external Flash, more suitable for UI and complex system
LoRa Transmit Power: High-power version 28 dBm, Low-power version 22 dBm
PC casing protects the screen and integrates FPC 2.4G antenna.

SKU: 2EPTWO270

₹ 0.00

Bulk orders or B2B inquiries? sales@twoelectrons.com

Lead time

Quantity	Dispatch
1-10 units	This item is currently out of stock, but you can still place an order. The estimated delivery time is 7 to 14 days from order confirmation.
>10 units	To be negotiated
