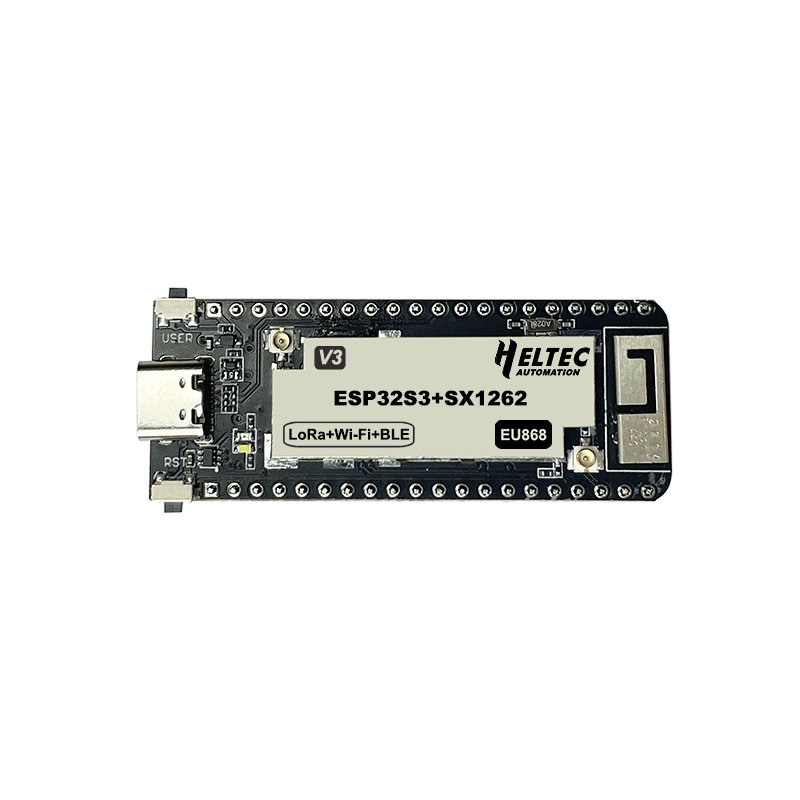

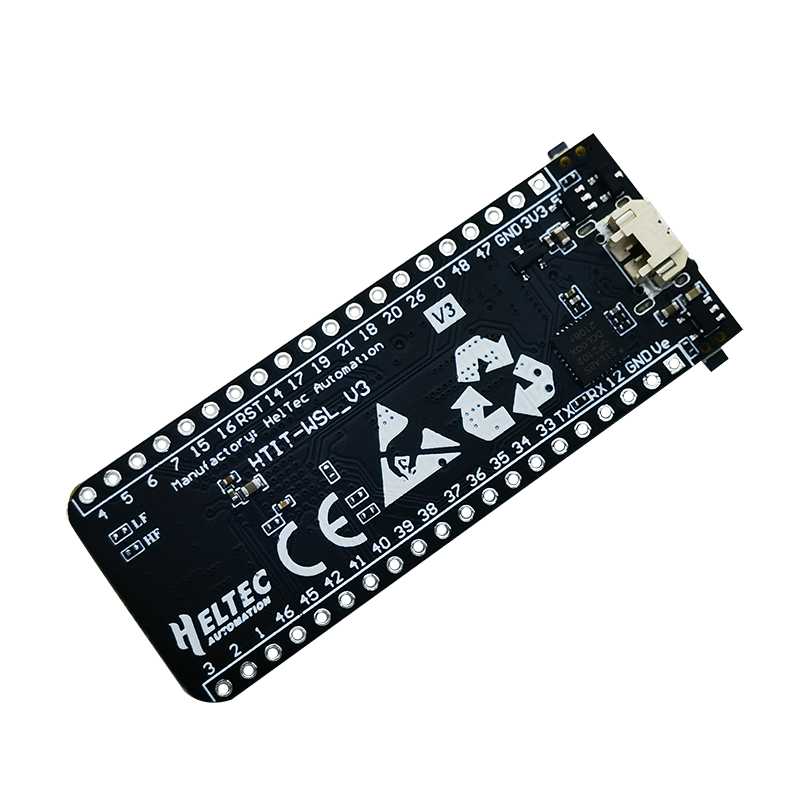

Wireless Stick Lite(V3), ESP32S3 + SX1262 LoRa Node, Meshtastic and LoRaWAN Compatible
No reviews yet
Out of Stock
Product Description
HTIT-WSL is a development board for Wi-Fi, Bluetooth and LoRa. Because some customers do not need OLED screen when using WiFi Lora32, we launched this product.
The HTIT-WSL is composed up of an MCU (ESP32-S3FN8) and Semtech LoRa Transceivers (SX1262), perfectly support Arduino®. Users can easily carry out secondary development and application.
Product Specifications
| Master Chip | ESP32-S3FN8 (Xtensa®32-bit lx7 dual core processor) |
| LoRa Chipset | SX1262 |
| USB to Serial Chip | CP2102 |
| Frequency | 863~928MHz |
| Max. TX Power | 21d B ± 1d B |
| Max. Receiving sensitivity | -134dBm |
| Wi-Fi | 802.11 b/g/n, up to 150Mbps |
| Bluetooth LE | Bluetooth 5, Bluetooth mesh |
| Hardware Resource | 7*ADC1 + 8*ADC2; 8*Touch; 3*UART; 2*I2C; 2*SPI; etc. |
| Memory | 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash |
| Battery | 3.7V lithium battery power supply and charging |
| Operating temperature | -20 ~ 70 ℃ |
| Dimensions | 58.08 * 22.6* 8.2 mm |
| Interface | Type-C USB; 2*1.25 lithium battery interface; LoRa ANT(IPEX1.0); 2.4G ANT(IPEX1.0); 2*20*2.54 Header Pin |
Product Features
- Microprocessor: ESP32-S3FN8 (Xtensa® 32-bit LX7 dual core processor, five stage pipeline rack Structure, main frequency up to 240MHz).
- SX1262 LoRa node chip.
- Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection
- Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).
- Integrated WiFi, LoRa, Bluetooth three network connections, onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa
- Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing.
- Support the Arduino development environment;
- With good RF circuit design and basic low-power design (sleep current ≤800uA), it is convenient for IoT application vendors to quickly verify solutions and deploy applications;
Package Includes
- Wireless Stick Lite - x1
- SH1.25×2 Battery Connector - x1
- Pin Map Sticker - x1
- LoRa Antenna -x1
Other Information
Country of Origin: China
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Microprocessor: ESP32-S3FN8 (Xtensa® 32-bit LX7 dual core processor, five stage pipeline rack Structure, main frequency up to 240MHz)
- SX1262 LoRa node chip.
- Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection
- Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).
