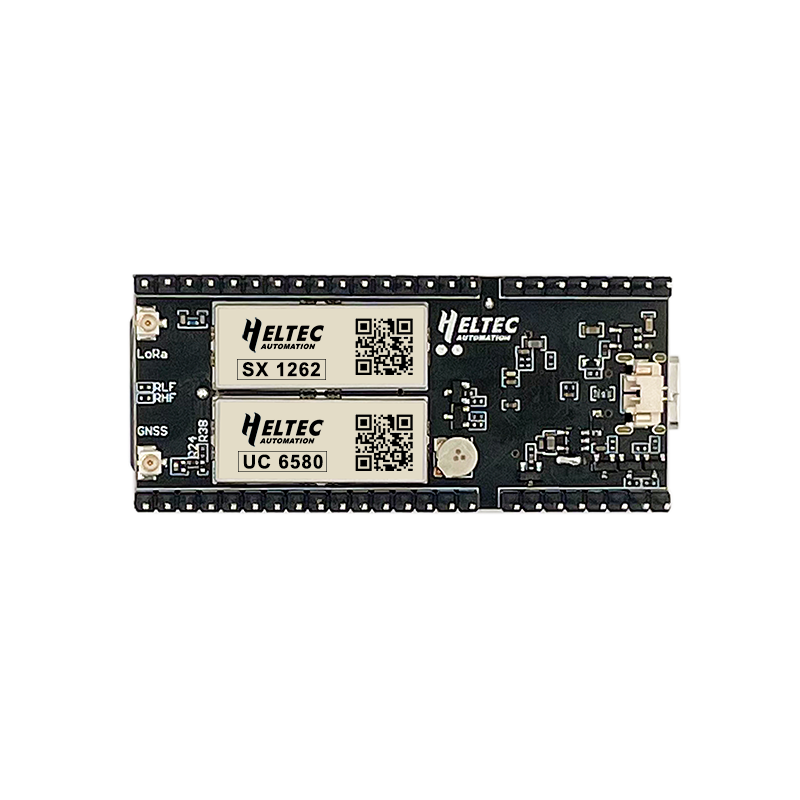

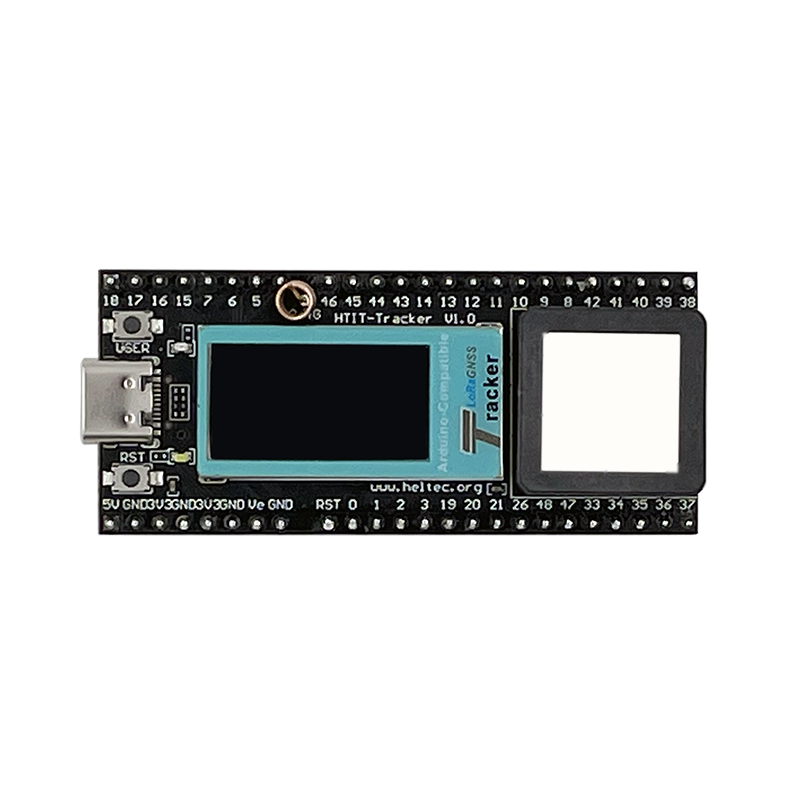

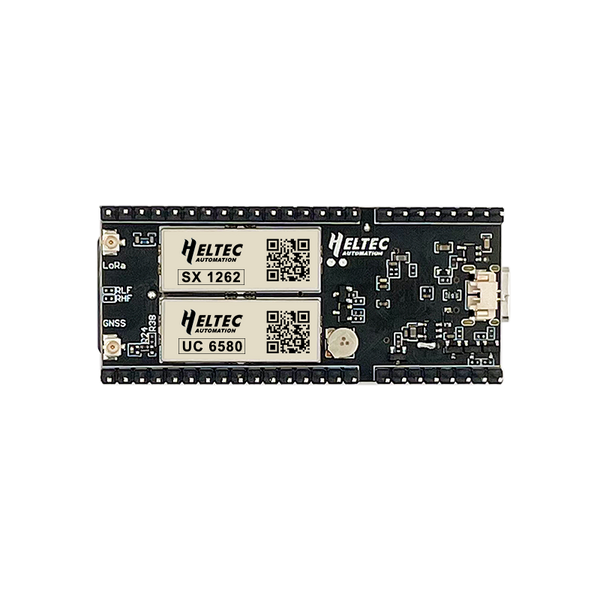

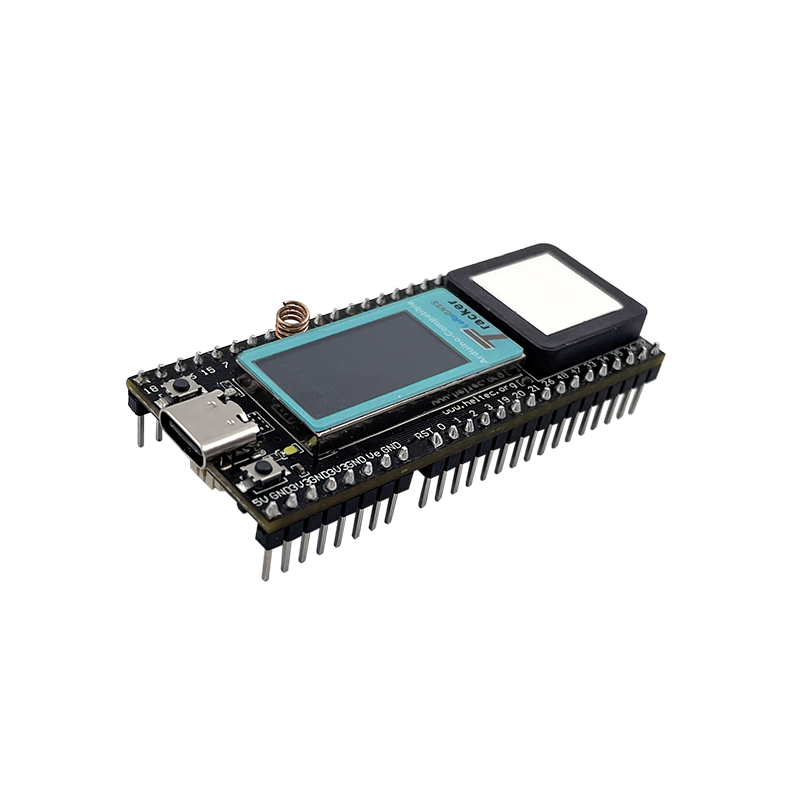

Wireless Tracker, ESP32S3 + SX1262 +GPS LoRa Node, Meshtastic and LoRaWAN Compatible
No reviews yet
Out of Stock
Product Description
Wireless Tracker is a development kit based on ESP32-S3FN8. It integrates both SX1262 and UC6580 to provide fast GNSS solution for IoT. It can track any object and then upload that data wirelessly by Wi-Fi, Bluetooth, LoRa, and has been widely used in Meshtastick.
Wireless Tracker supports GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning. It is perfectly compatible with Arduino, can be widely used in development such as bicycle sharing services, tracking pets or livestock, locating vehicles, tracking children, etc.
Product Specifications
| Master Chip | ESP32-S3FN8 (Xtensa®32-bit lx7 dual core processor) |
| LoRa Chipset | SX1262 |
| GNSS Chipset | UC6580 |
| Frequency | 470~510MHz, 863~928MHz |
| Max. TX Power | 21±1dBm |
| Max. Receiving Sensitivity | -134dBm |
| Wi-Fi | 802.11 b/g/n, up to 150Mbps |
| Bluetooth LE | Bluetooth 5, Bluetooth mesh |
| Hardware Resource | 7*ADC1 + 2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI; etc. |
| Interface | Type-C USB; 2*1.25 lithium battery interface; LoRa ANT(IPEX1.0); 2*18*2.54 Header Pin |
| Battery | 3.7V lithium battery power supply and charging |
| Dimensions | 65.48 * 28.06* 13.52mm |
Product Features
- Low power design of dual-frequency multi-system based on 22nm technology.
- ESP32-S3FN8+SX1262+UC6580 Chipset, supports Wi-Fi, LoRa, Bluetooth, GNSS.
- Supports GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning.
- Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.
- Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).
- Onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa and GNSS use.
- Onboard 0.96-inch 160*80 TFT LCD display, which can be used to display debugging information, battery power, and other information.
- Support the Arduino development environment.
Docs & Resources
Package Includes
- Wireless Tracker -x1
- LoRa Antenna - x1
- SH1.25×2 Battery Connector - x1
- Pin Header - x2
