DFRobot SEN0395 24GHz mmWave Radar Human Presence Sensor 9m
Low Stock, 1 left
Product Description
DFRobot SEN0395 24GHz mmWave Radar Human Presence Sensor detects moving, micro-moving and stationary human presence at distances up to 9m. Unlike PIR-only presence sensing, the mmWave radar can detect very small body movements and stillness, making it suitable for occupancy sensing, smart lighting, HVAC control, security and intelligent automation.
The compact 24 × 28mm module uses 24GHz FMCW/CW radar, supports UART plus GPIO switching output, operates from 3.6–5V and provides a broad 100° × 40° sensing beam.
Product Specifications
| Model | SEN0395 |
| Operating Frequency | 24GHz |
| Power Supply | 3.6–5V |
| Operating Current | 90mA |
| Detection Distance | Up to 9m |
| Equivalent Transmit Power | 9–12dBm (DFRobot product specification) |
| Beam Angle | 100° × 40° |
| Modulation | FMCW / CW |
| Communication | UART + GPIO |
| Baud Rate | 115200 |
| Operating Temperature | -40°C to 85°C |

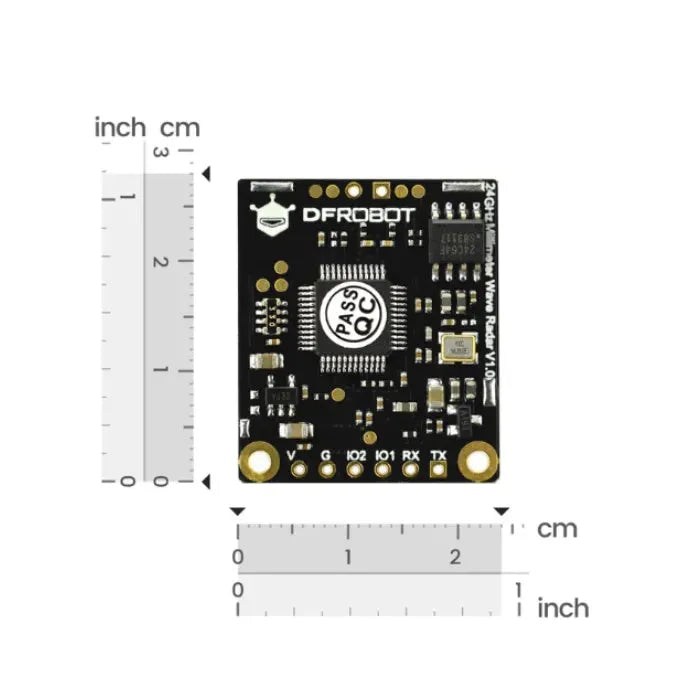

| Dimensions | 24 × 28mm |
Product Features
- Stillness Detection: Sensitive to subtle body movement, enabling occupancy detection even when a person is sitting or sleeping.
- 9m Detection Range: Configurable radar sensing distance with a maximum specified range of 9m.
- Wide Beam: 100° horizontal × 40° vertical beam provides broad coverage when correctly mounted.
- Dual Output: Supports 115200-baud UART communication and GPIO output for simple trigger-style applications.
- Compact Integration: 24 × 28mm PCB can be embedded into smart-home, lighting, HVAC, robotics and security products.
- Wide Temperature Range: Designed for operation from -40°C to 85°C.
Package Includes
- 1 × DFRobot SEN0395 24GHz mmWave Human Presence Detection Sensor
Other Information
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- 24GHz mmWave human presence sensing up to 9m
- Detects moving, micro-moving and stationary human presence
- FMCW/CW multi-mode radar with separate transmit/receive structure
- 100° × 40° beam angle for wide-area occupancy sensing
- UART serial communication plus GPIO switching output
- Compact 24 × 28mm form factor for easy embedded integration
- Strong resistance to interference from light, dust, temperature, humidity and environmental noise
