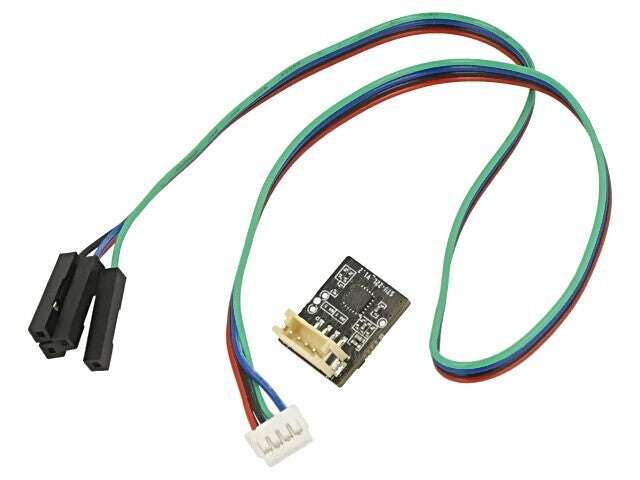

DFRobot Ultrasonic ToF Material Detection Sensor
Low Stock, 1 left
Product Description
DFRobot Ultrasonic ToF Material Detection Sensor (SEN0560) is a compact short-range ultrasonic time-of-flight sensor designed to identify surface materials by analyzing differences in ultrasonic echo energy. It can distinguish hard and soft surfaces within 2–10 cm, making it suitable for robotic cleaners, smart appliances and embedded automation systems.
The sensor operates from 3.3V, consumes only about 8mA during normal operation, provides a 45° field of view and supports both UART and digital IO output for straightforward controller integration.
Product Specifications
| Model | SEN0560 |
| Input Voltage | 3.3V |
| Start-up Current | 50mA |
| Operating Current | 8mA |
| Driving Frequency | 175kHz |
| Detection Range | 2–10cm |
| Detection Frequency | 100Hz |
| Field of View | 45° |
| Communication | UART / IO |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -30°C to 70°C |
| Protection Level | IP54 |
| ESD Protection | 15kV |
| Lifetime | 3000h |
| Weight | 1.0g excluding wires |
Product Features
- Material Recognition: Uses differences in ultrasonic echo energy to distinguish hard surfaces such as tile/wood from soft surfaces such as carpet or sponge.
- Short-Range Detection: Optimized for close-proximity sensing from 2 to 10 cm.
- Fast Response: Supports a 100 Hz detection frequency for responsive robotic applications.
- Flexible Interface: Recognition results can be read through UART communication or a digital high/low IO signal.
- Low-Power Embedded Design: Operates at 3.3V with about 8mA typical operating current and only 1g sensor weight excluding wires.
- Environmental Protection: Rated IP54 with 15kV ESD protection according to DFRobot documentation.
Package Includes
- 1 × DFRobot SEN0560 Ultrasonic Material Detection Sensor
- 1 × ZH1.5T-4P DuPont Connector
Other Information
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Ultrasonic ToF material identification using echo-energy analysis
- Detects hard and soft surface materials at 2–10 cm
- 45° field of view with 100 Hz detection frequency
- UART and digital IO output modes
- 3.3V operation with approximately 8mA operating current
- Compact 1g design for embedded robotics and smart appliances
