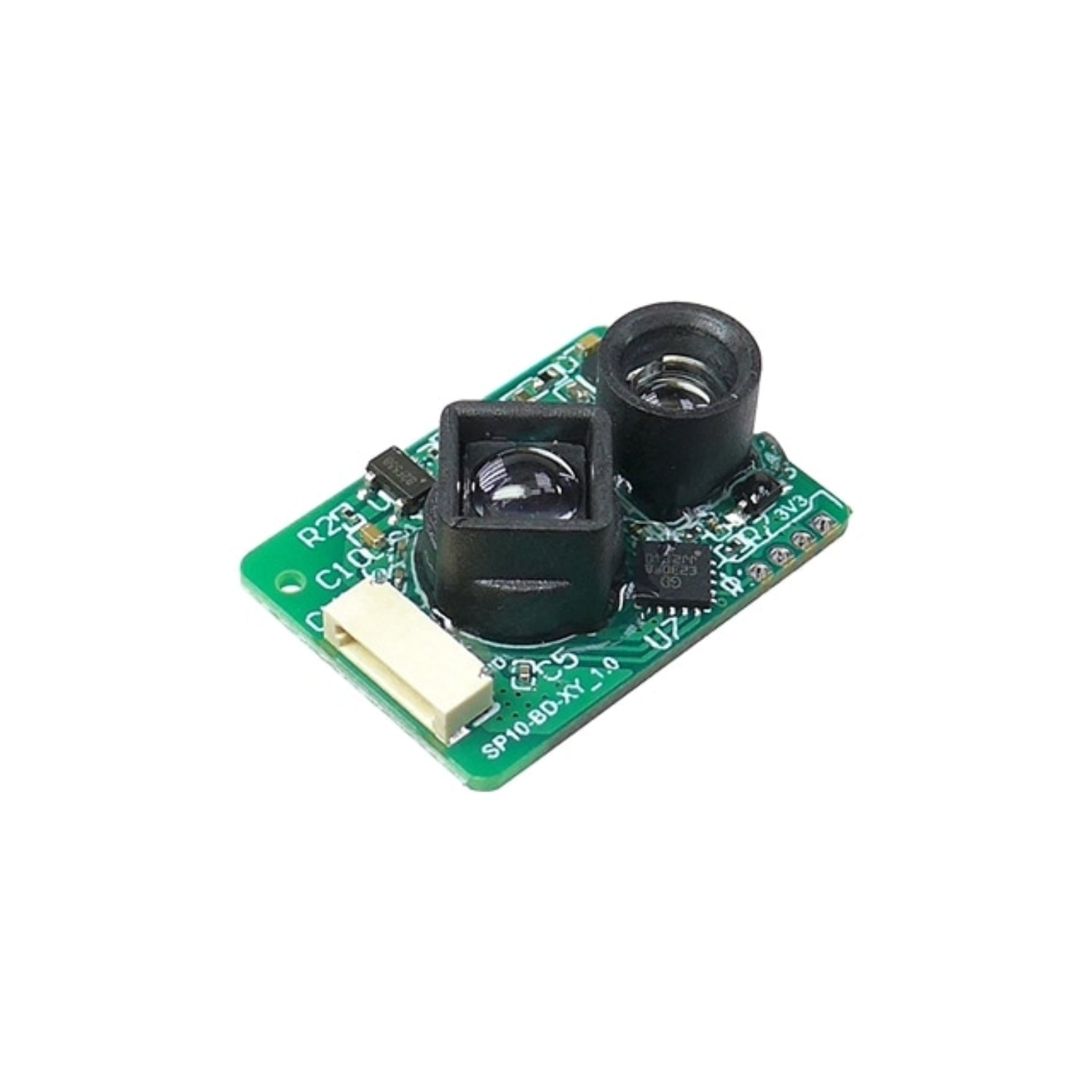

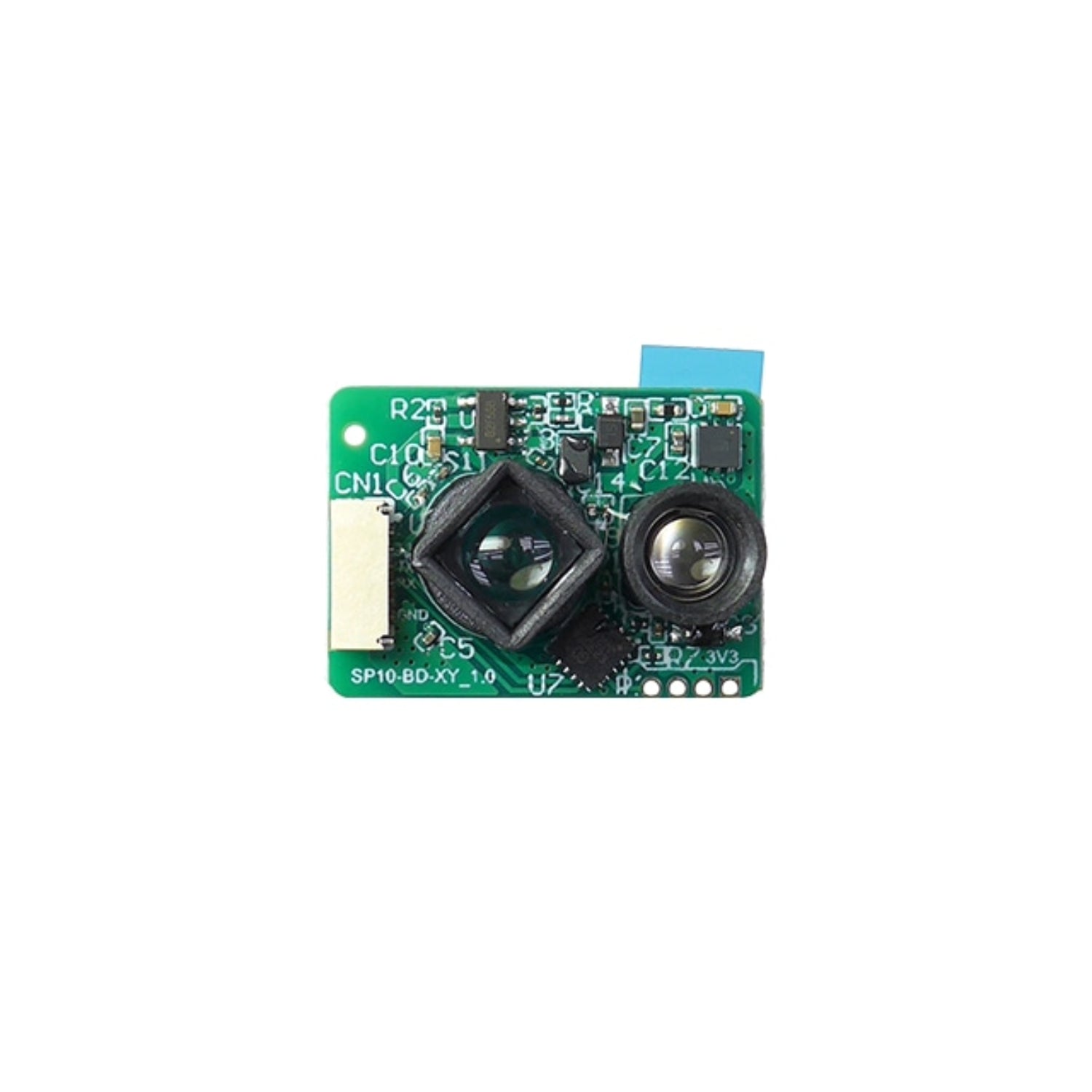

PONO TSD20 20m Single-Point ToF LiDAR Distance Sensor
Low Stock, 1 left
Product Description
The PONO TSD20 is an ultra-compact single-point dToF LiDAR distance sensor designed for fast and reliable ranging in robotics, drones, AGVs, smart equipment and industrial automation. It measures from approximately 5 cm up to 20 m on high-reflectivity targets and combines a fast 200 Hz measurement rate with 1 mm distance resolution.
The TSD20 supports UART and I2C communication, operates from a low-voltage DC supply, and provides strong resistance to ambient-light interference. Its small 21 × 15 × 7.43 mm footprint and approximately 2 g weight make it well suited to space- and weight-constrained embedded applications.
Key Features
- Direct Time-of-Flight (dToF) single-point laser ranging
- Maximum measuring range up to 20 m
- Fast 200 Hz measurement frequency with lower selectable rates
- 1 mm distance resolution
- UART and I2C digital interfaces
- Strong ambient-light immunity up to 8 m at 100 klux
- 905 nm Class 1 laser
- Compact 21 × 15 × 7.43 mm module weighing approximately 2 g
Applications
- Drone altitude holding and obstacle avoidance
- Robot and AGV obstacle avoidance
- High-speed distance measurement
- Industrial automation and safety monitoring
- Smart equipment and embedded ranging systems
Product Specifications
| Model | TSD20 |
| Technology | Direct Time-of-Flight (dToF) single-point LiDAR |
| Measuring Range | 0.05–20 m @ 90% reflectivity; 0.05–10 m @ 10% reflectivity |
| Blind Zone | 0.05 m |
| Accuracy | ±5 cm below 5 m; approx. 1% at 5 m and above (1σ) |
| Repeatability | ±10 mm |
| Resolution | 1 mm |
| Measurement Frequency | Up to 200 Hz; selectable 100 / 50 / 20 / 10 / 1 Hz |
| Ambient Light Immunity | Up to 8 m @ 100 klux |
| Laser Wavelength | 905 nm |
| Laser Safety | Class 1 |
| Field of View | Approx. 3° |
| Supply Voltage | 3.3–3.6 V DC |
| Peak Current | Approx. 70 mA @ 3.3 V |
| Average Current | Approx. 40 mA @ 3.3 V |
| Average Power | <0.2 W |
| Communication | UART / I2C |
| Default UART Baud Rate | 460800 bps |
| Operating Temperature | -20°C to +60°C |
| Dimensions | 21 × 15 × 7.43 mm |
| Weight | Approx. 2 g |
Product Features
- dToF Ranging: Direct Time-of-Flight measurement provides rapid single-point distance data for embedded navigation, obstacle avoidance and industrial sensing.
- Long Measurement Range: Measures approximately 0.05–20 m with 90% target reflectivity and up to 10 m with 10% reflectivity.
- High-Speed Output: Supports up to 200 Hz measurement frequency, with 100/50/20/10/1 Hz settings for different application requirements.
- Measurement Performance: Typical accuracy is ±5 cm below 5 m and about 1% of distance at 5 m and above, with 1 mm output resolution.
- Dual Digital Interfaces: Supports UART and I2C for straightforward integration with microcontrollers and embedded computers.
- Outdoor-Light Resistance: Designed for strong ambient-light conditions, specified up to 8 m at 100 klux.
- Compact Integration: Approximately 21 × 15 × 7.43 mm and 2 g, making it suitable for drones, mobile robots and space-constrained equipment.
- Class 1 Laser: Uses a 905 nm Class 1 laser source when operated as specified.
Package Includes

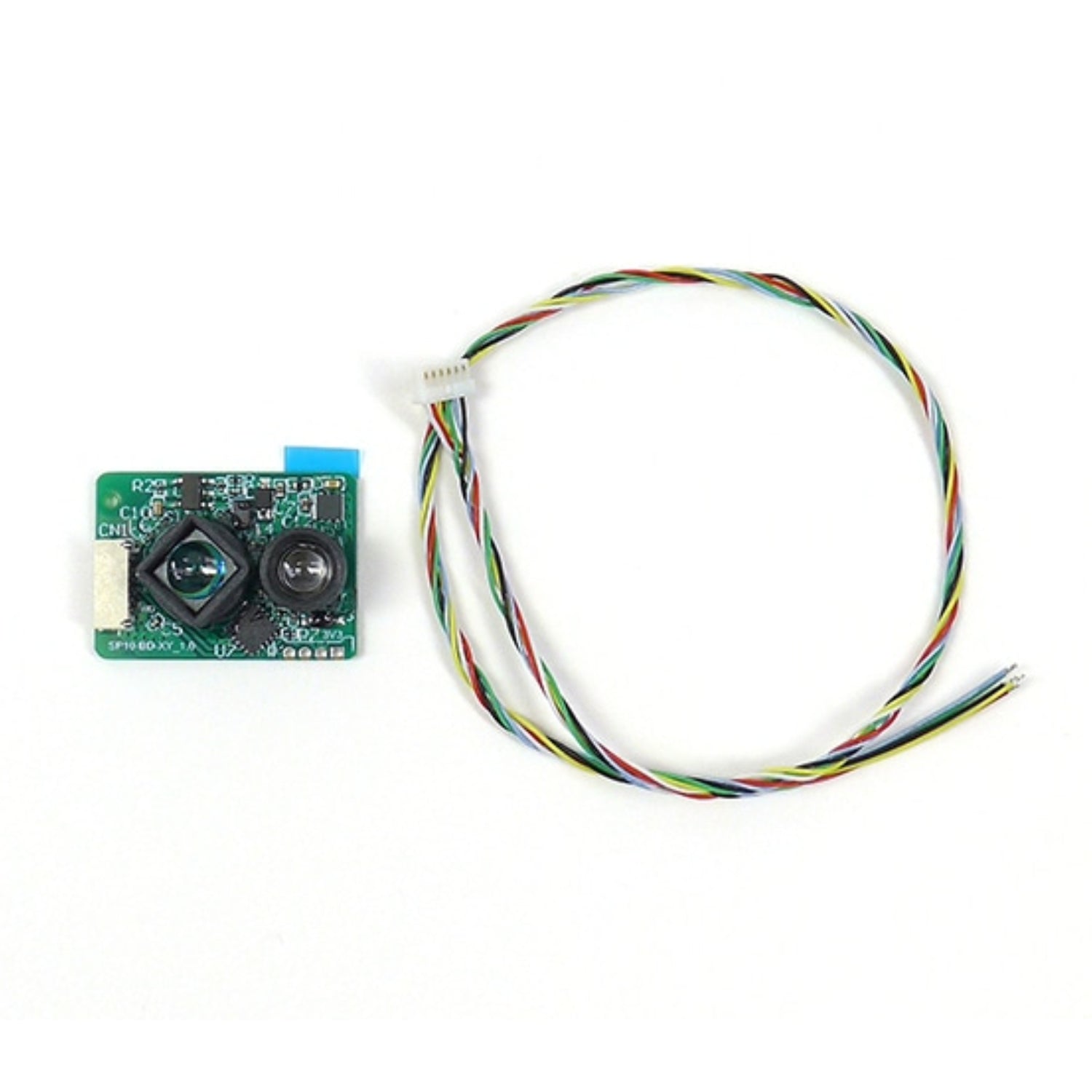

- 1 × PONO TSD20 20m Single-Point ToF LiDAR Distance Sensor
